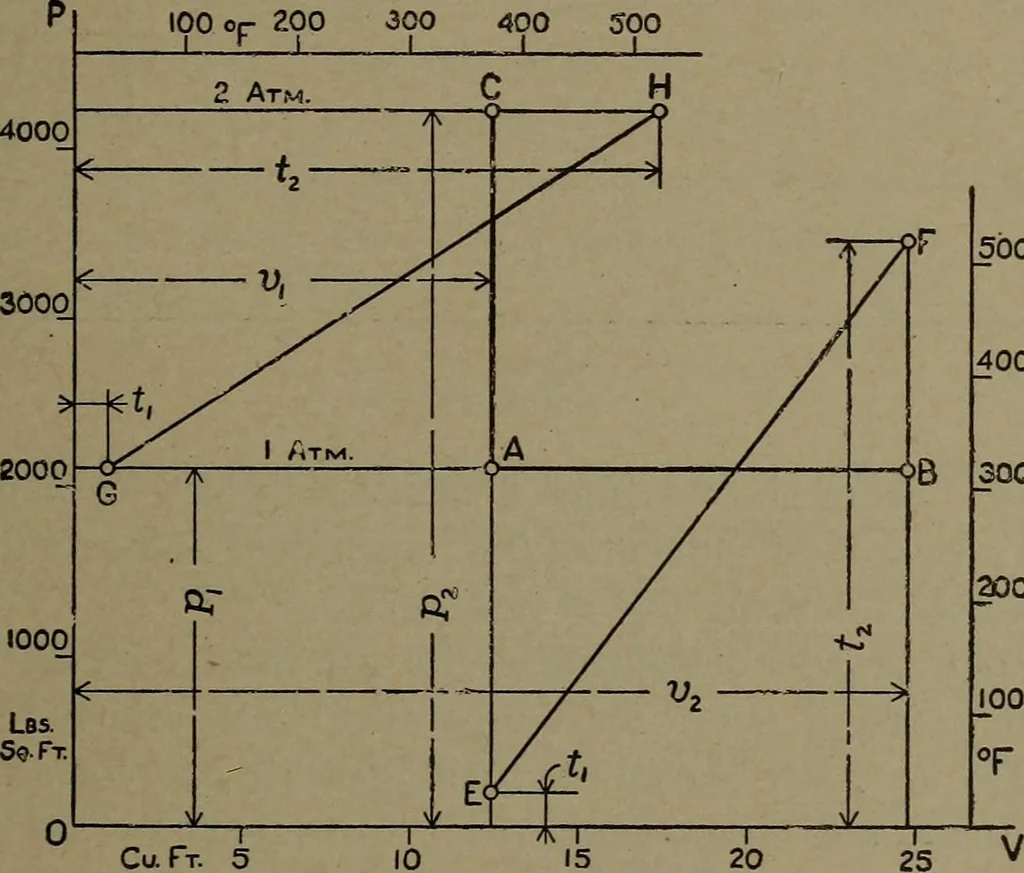

r, we consider only the relations between the determining vari-ables p, v, and T, deferring all questions as to quantity of heat or work.The mechanical side of both operations is represented graphically inFig. 27, where volumes are measured horizontally as abscissas, pressuresvertically as… … 300 200 u aanaaa Fig. 27. — Simple Heating Operations. AC. If the body of gas were confined in the cylinder outlined at thebottom of the figure, the piston would be allowed to move out against aconstant resistance in the first case, but would be held fast in the second.The line EF, on the volume…
