Mechanics of the household; a course of study devoted to domestic machinery and household mechanical appliances (1918)
Keene, E. S. (Edward Spencer), b. 1864 · New York, McGraw-Hill book company, inc.; · leaf 130

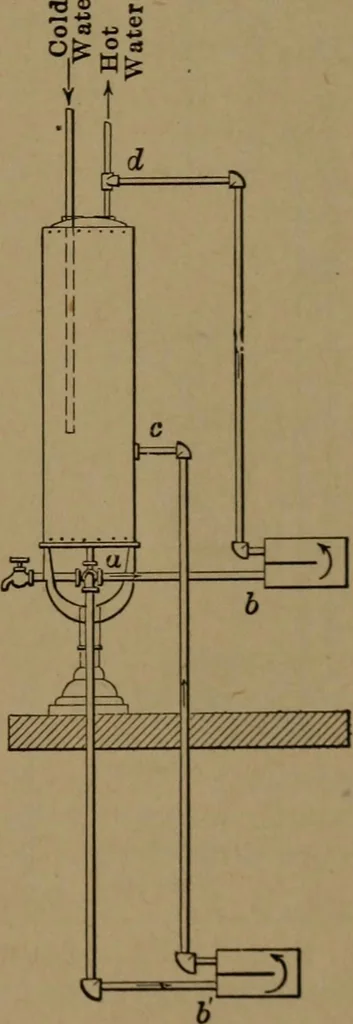

r above thecold water pipe is actually used for storage.The water in the lower half constantly mixeswith the entering cold water before it isheated by passing through the water-back. When hot wateris drawn from the top of the range boiler, cold water enters bythe cold-water pipe and reduces the… … Fig. 116.—Doubleconnections for therange boiler where aheater is placed inthe basement for oc-casional use. 120 MECHANICS OF THE HOUSEHOLD Suppose the range boiler is full of water, and that it is beingheated. The lower pipe at the left-hand end is conducting thewater to the water-back and it is…
Heating · Lighting · Plumbing
