Mechanics of the household; a course of study devoted to domestic machinery and household mechanical appliances (1918)
Keene, E. S. (Edward Spencer), b. 1864 · New York, McGraw-Hill book company, inc.; · leaf 33

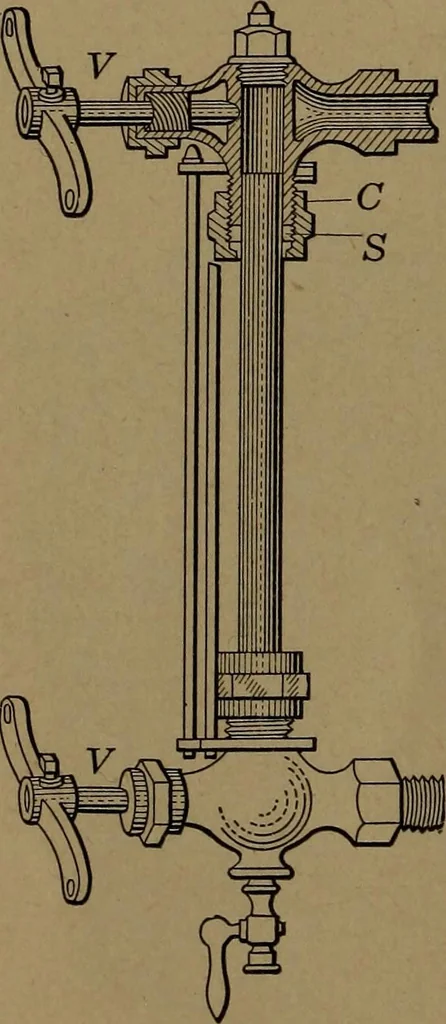

should be fully understood.An intimate acquaintance with the details ofthe plant, helps to make its operation satis-factory and adds to the efficiency with whichit can be made to perform its duty. The Water Column.—In Fig. 18 thewater column is shown at C It is attachedto the boiler by pipes at… … Fig. 19.~The watergage. tenor, heating surface the try-cocks T and T and the steam gage G. The object of the gage-glass is to show the height of the waterin the boiler. It is shown in place on the boiler in Figs. 16 and18 and in detail in Fig. 19. The lower part of the gage-glassoccupies a position…
Heating · Lighting · Plumbing
