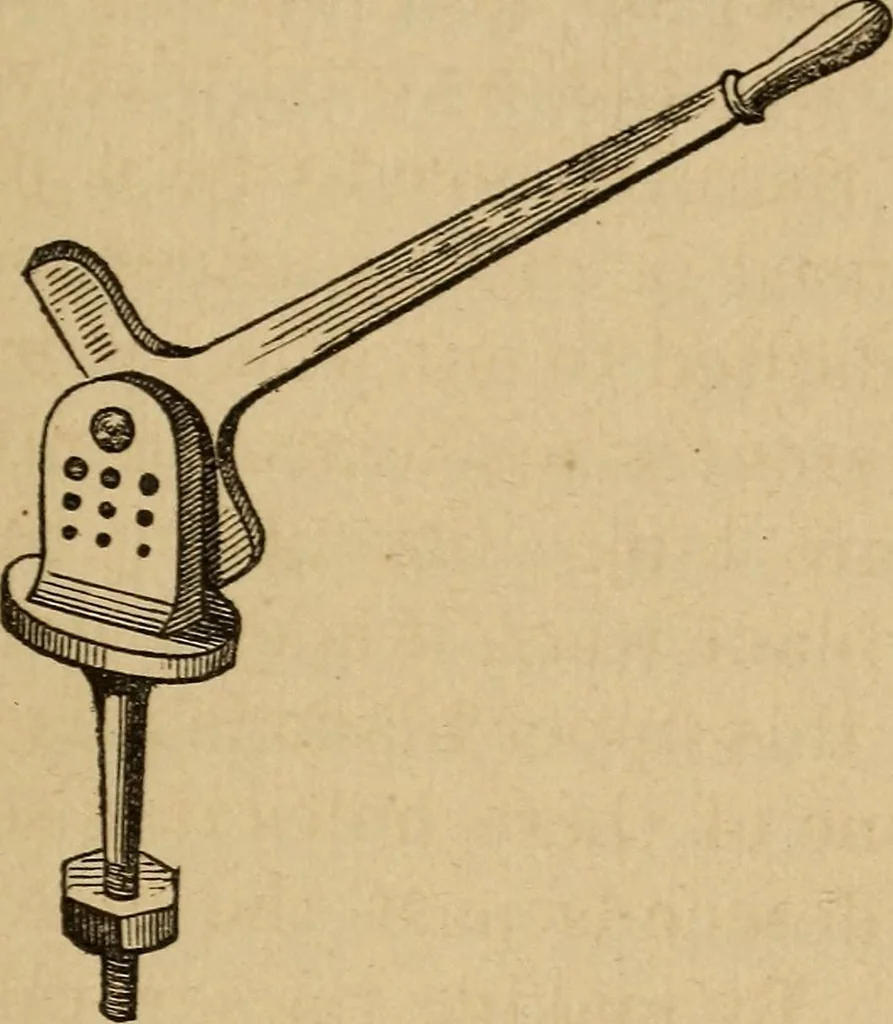

cuttingedges and bolted transversely across the face-plate of the lathe, and this blade revolved againsta plate placed in front of it, and through this platethe wires to be cut were inserted. The distance WIRE-CUTTING. 153 of the cutting-blade from the face-plate to whichit was attached determined… … Fig. 34. extension of the lower part of the plate, a nutholding it firmly in place. The upper part of thebar has a number of holes drilled to receive thewire to be cut, and at the extreme upper portionthere is a hole to receive the bolt that forms thepivot upon which the cutting-blade is hung. Itis…
