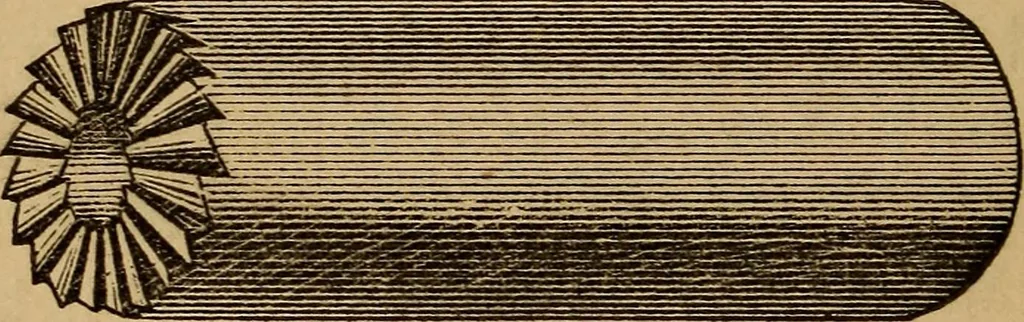

d. In use the larger tool mustbe placed over the smaller one and confined to itby means of a set screw. Or if three sizes of cy-linder be wished, three of these tools can be sim-ultaneously employed. The length of each portionof cylinder can be obtained by regulating the dis-tance between the ends… … Fig. 40. factory in its performance. The tool representedin the cut has sometimes been made with a num- PRODUCTION OF CYLINDRICAL SURFACES. 187 ber of longitudinal cuts made with a saw, extend-ing from the cutting end some distance towardthe body of the tool, and a ring encompassing thetool and…
