The mechanic's tool book. With practical rules and suggestions for use of machinists, iron-workers and others (1868)

Harrison, William B · New York, D. Van Nostrand · leaf 80

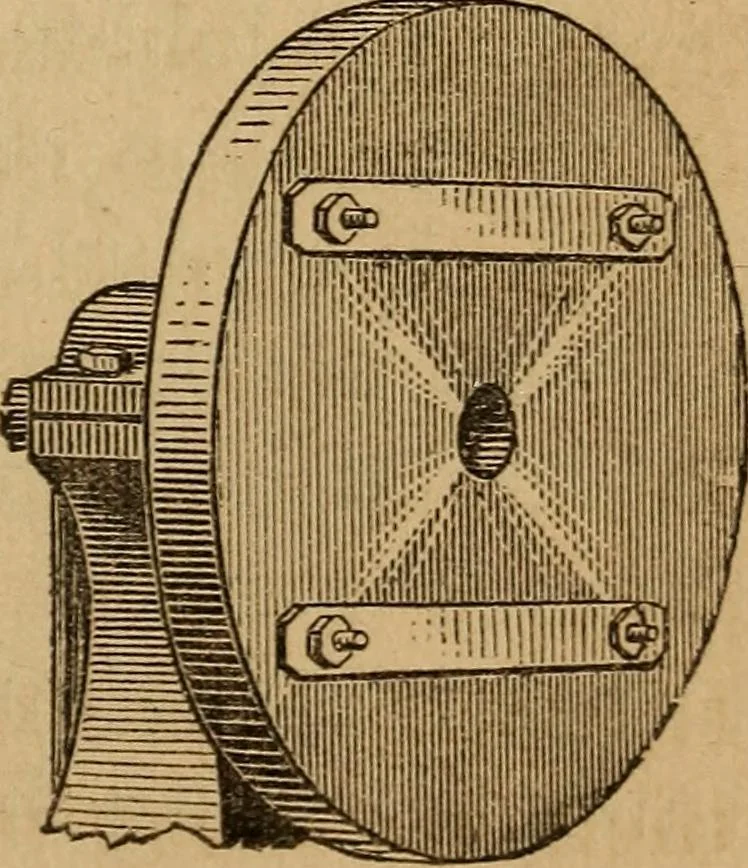

An illustration from The mechanic's tool book. With practical rules and suggestions for use of machinists, iron-workers and others, 1868, leaf 80 — k board of some hard wood to theface-plate, and turn it off to a size somewhat largerthan the face-plate. Then fit two strips of ironacross the board, as shown in the cut, and fastenthe straps at each end with bolts to the face of thewood. The heads of thesebolts ought to be made square,and sunk… … 76 mechanics tool book. getting lost, if it be desired to keep the boardupon the plate. A chuck can be made upon thisplan which will be very often found useful, byscrewing the bolts directly into the face-platewithout the intervening piece of board; but it isbest to put on the board, as by so doing…

Machine-shop practice · Tools

Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
