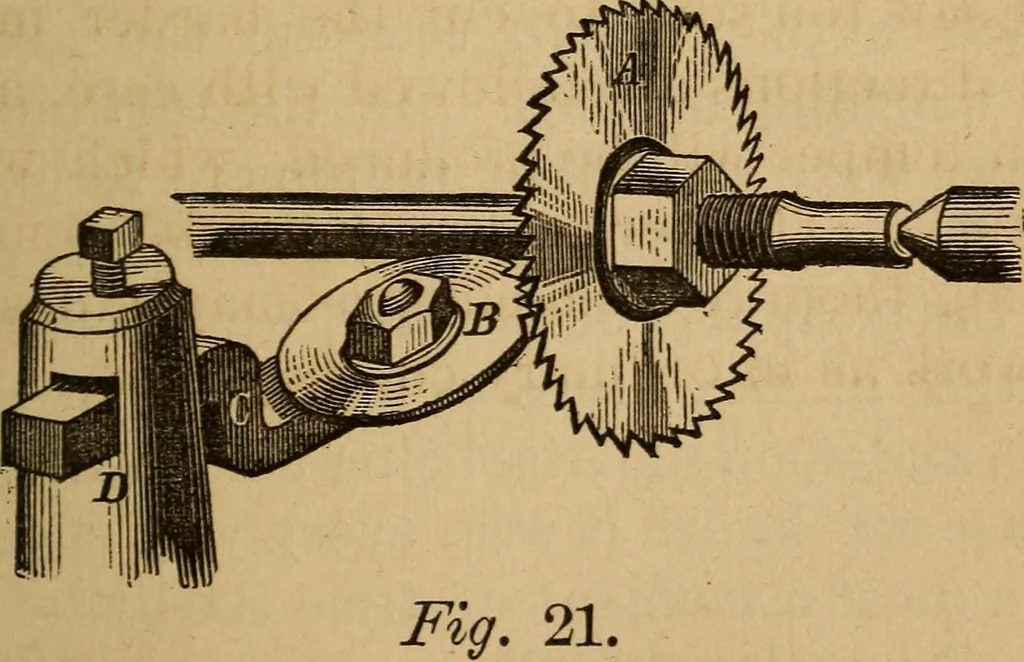

OUTTEES. The usual method of forming the teeth of sawsand rotary cutters to be used in the lathe, orotherwise, is to clamp them in the vise and formeach tooth separately with a file. This is quite alaborious process, yet, by the aid of another prop-erly-shaped cutter and a simple fixture to hold… … the teeth is rotated in the lathe, and the blank B,is held in a horizontal position about the hight of 90 MECHANIC S TOOL BOOK. the cutter-spindle upon a piece of iron 0, which isheld in the tool-post, D, of the lathe. The blankis placed upon a short stud, which is inserted in0 and is confined so…
