Maurer, Edward R. (Edward Rose), b. 1869 · New York : John Wiley & sons, inc.; [etc., etc.] · leaf 140

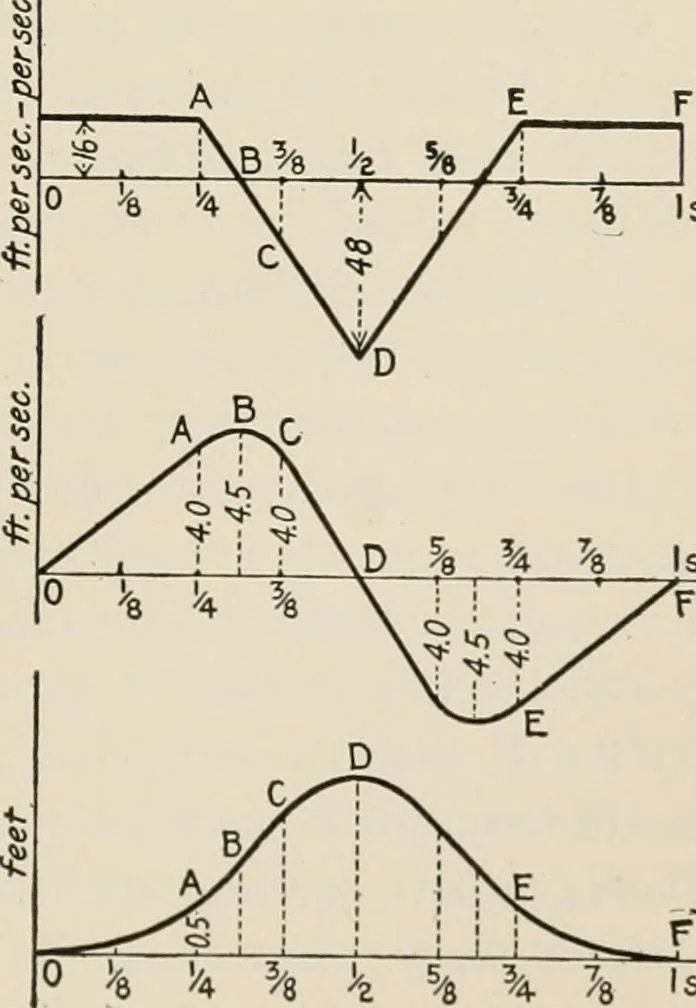

c. Example. — A mechanism is to be de-signed for producing a rectiUnear motionwhose acceleration-time graph is shownin Fig. 227. There are three distinctlaws of acceleration. In the first andlast quarter seconds the acceleration isconstant and equals 16 feet per secondper second; in the second… … IA ^/8 z % % Figs. 227, 228, 229 F I sec. i^o Chap, vii to do, but first we get the velocity-time and distance-time graphs approxi-mately. During the first quarter of a second the velocity changes uniformly, andthe change is i6 X j = 4 feet per second; and if the initial velocity is zero,then OA…
Mechanics
