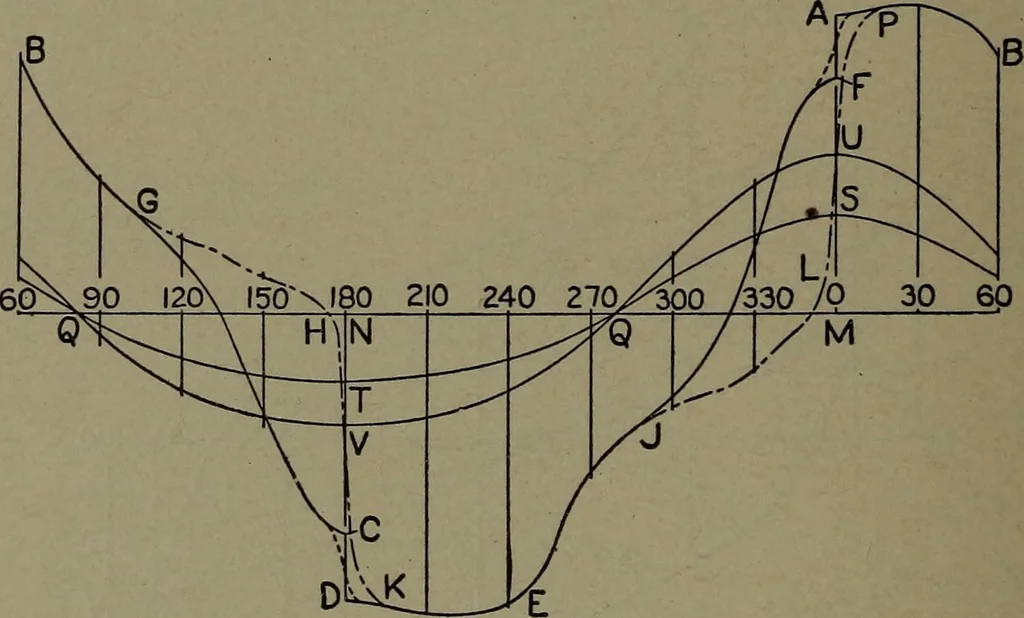

3, but the base ischanged to the developed crank circle, or the diagram is on a time base.In the plot of the effective steam-pressure curve, the vertical linesat CD and FA are reproduced from the stroke-line diagram (with ap-parently instantaneous change of pressure); but the actual manner… … Fig. 184. — Developed Diagram of Horizontal Pin Pressures. the form sketched at GHK and JLP. The speed of the pressure -rise(from H to K and from L to P), and its exact timing in the cycle ofthe engine, would depend very much upon valve action in relation tovolume of clearance; but it is quite sure…
