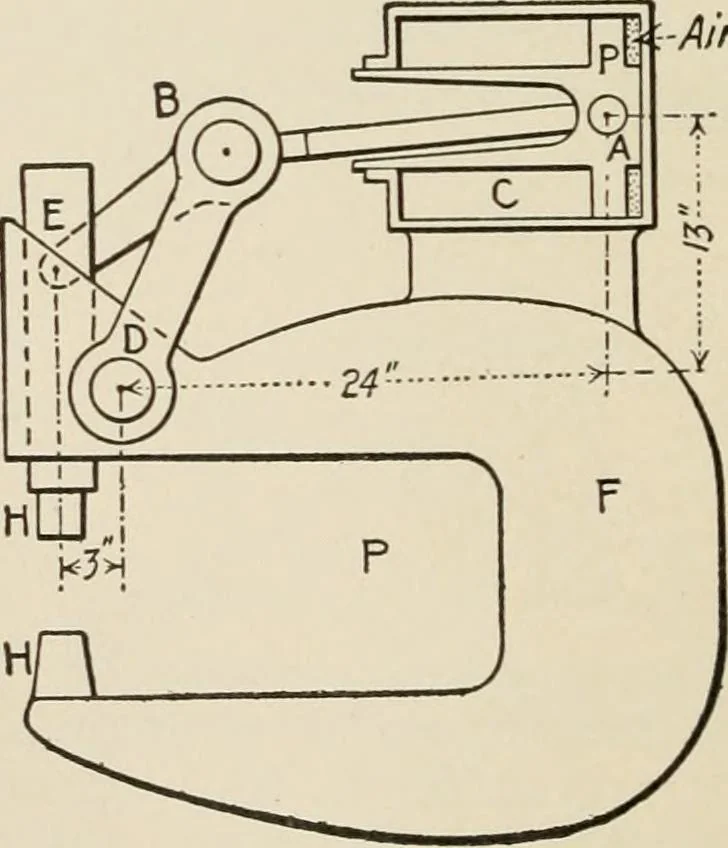

frame) at E; HE are the rivet dies between which the rivet is squeezed. AB = ig ins.; BD = 13 ins.; BE = 10 ins.; the diameter of the cylinder is 10 ins. Assume the air pressure to be 100 lbs/in^ and then determine the pressure at the pins D and E, the pressure against the guide, and the pressure… … Fig. 18 Fig. 17 3S-(i2). The beam AB (Fig. 18) is supported at C and D, and it sustains threeloads as shown. The beam weighs 50 lbs. per lineal feet. Determine each supportingforce, or reaction. 327 36-(i2). Fig. 19 represents a shutter dam; AB is the shutter, and CD and CE arebraces. The shutter…
