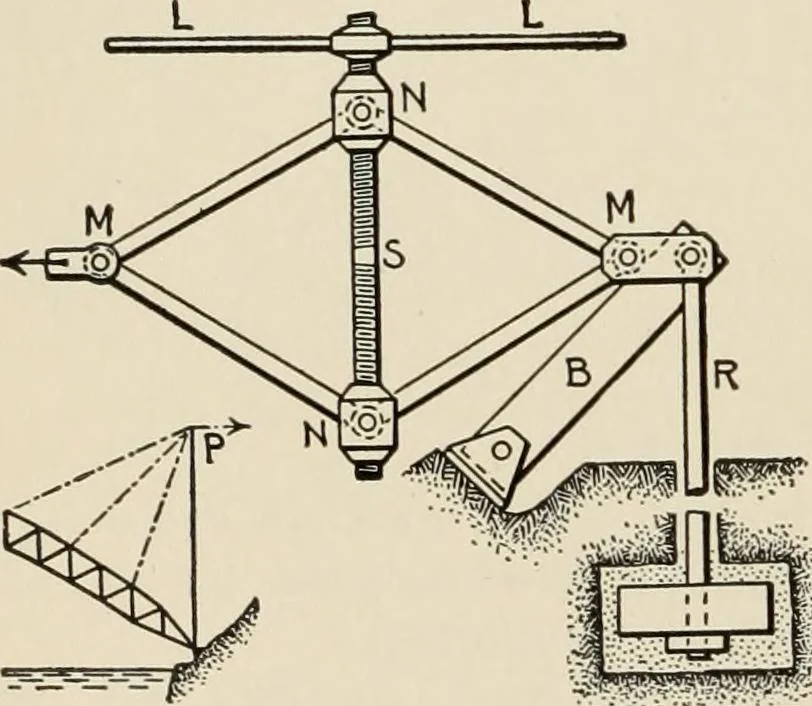

on of a steel arch(Niagara Falls and Clifton Bridge).t Itconsists of four multiple links pinned to-gether as shown, a right-and-left screw 5with nuts N, and a lever L. The toggleis supported by the anchor rod R and braceB. The pulling end of the toggle wasconnected to the arch under… … FlG. 44 termine the couple on the lever which will shorten NN; which will lengthen NN. 72-(2o). Solve Prob. 34, taking into account the friction at all rubbing surfaces(pins, piston, and guide). Pins A and E are 2 ins. and pins B and D are 3 ins. in * Engifieering News, July15, 1911. f Engineering…
