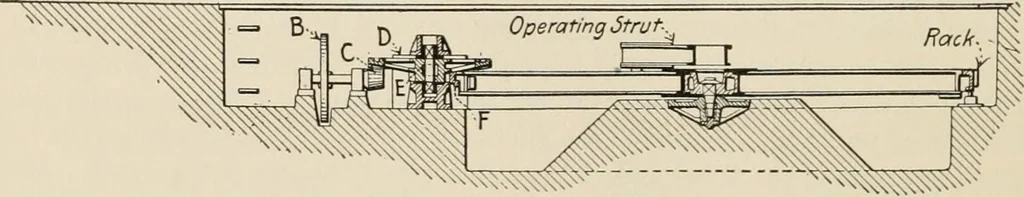

Plan … Section at Bull Wheel. Fig. 87 349 i67-(45)- The shaft of the engine, which operates the gate described in the pre-ceding problems, carries a pinion A (Fig. 87); A drives a spur wheel 5 on a secondshaft which also carries a bevel pinion C; C drives a bevel spur wheel Z) on a verticalshaft which…
