A treatise on architecture and building construction (1899)
International Correspondence Schools · Scranton, The Colliery engineer co. · leaf 569

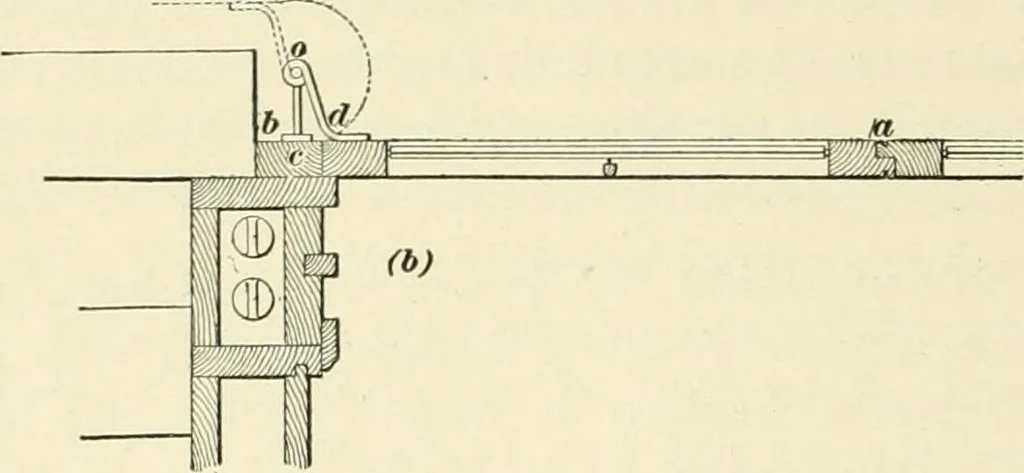

shutter to swing around the out-side of the brick wall clear of the opening, as shown by thedotted lines, but the corresponding length 0(/ causes theblind when opened to move first in the direction (/a, and islikely to cause the shutters to bind when they are opened.This tendency, however, is… … ,- zt;^ r-r: . J-.- -./ -, ; o jo! II ki ■ ° o cr: 0 . 1^1 !-L I o >) » CO Fig. 62. §10 JOINERY. 89 103. Outside blinds are laid out with a measuring- rod,in the same manner as doors and other framed work, thelengths of stiles and rails, the positions and lengths fortenons, and the location of…
Architecture · Building
Internet Archive · New York Public Library · Public Domain Mark 1.0. Free to use for anything.
