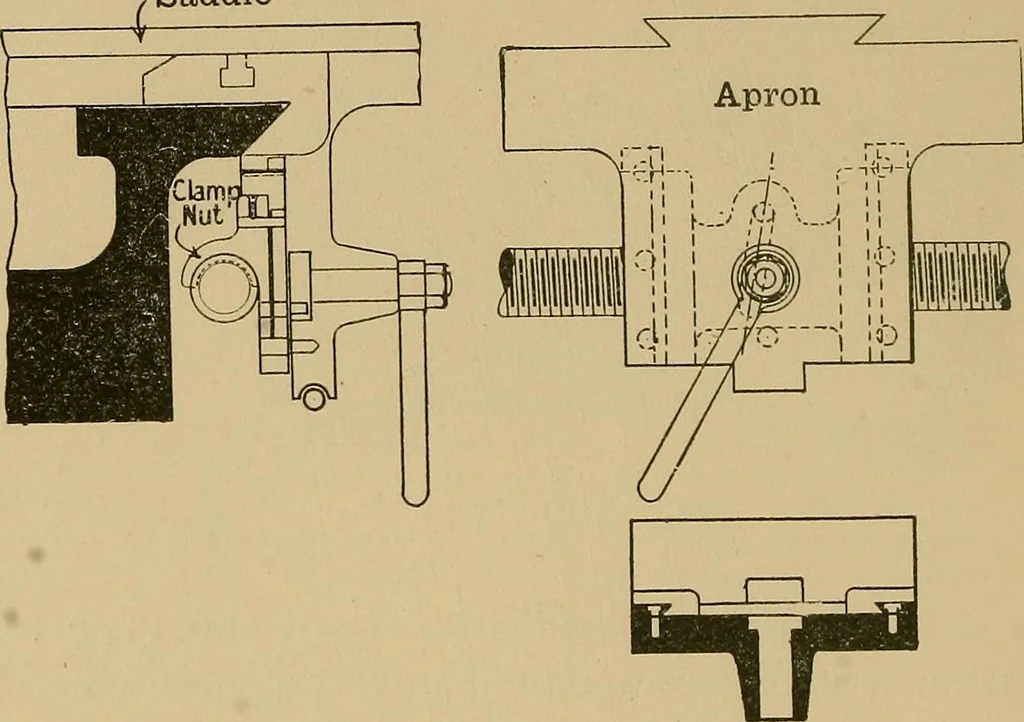

Fig. 175. 190 METAL-WORK the saddle wound back quickly by means of a rack, which isfixed to the bed-plate, and a small pinion, which is fitted tothe apron. Fig. 176 is a section showing the details of clamp nut, apron,and saddle. The transmission of the motion from the mandrilto the lead-screw is…
