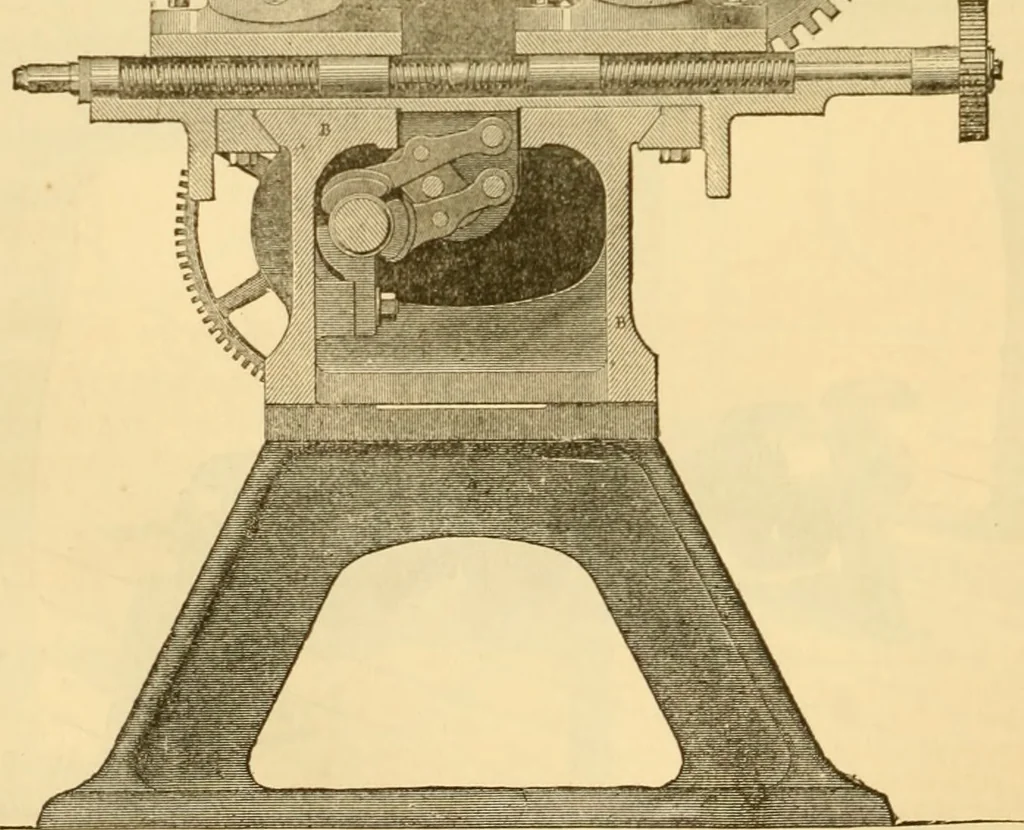

shown suspended beneath thelathe-bed. This lathe is providedwith Slates patent taper-turningattachment. This is constructedas follows: At the baek of thelathe-bed are three backets, shownat E in the plan view of the at-tachment in Fig. ^588. Thesebrackets support an adjustable bar^4. The centre… … ment of A after it is placed as near as may be in position on the brackets. The bar A is providedwith a longitudinal slot, into which the slide E traverses a close working fit; and to E is pivoted abar E, which carries the nut for the cross-feed. The nut-bar E slides in a groove provided in the…
