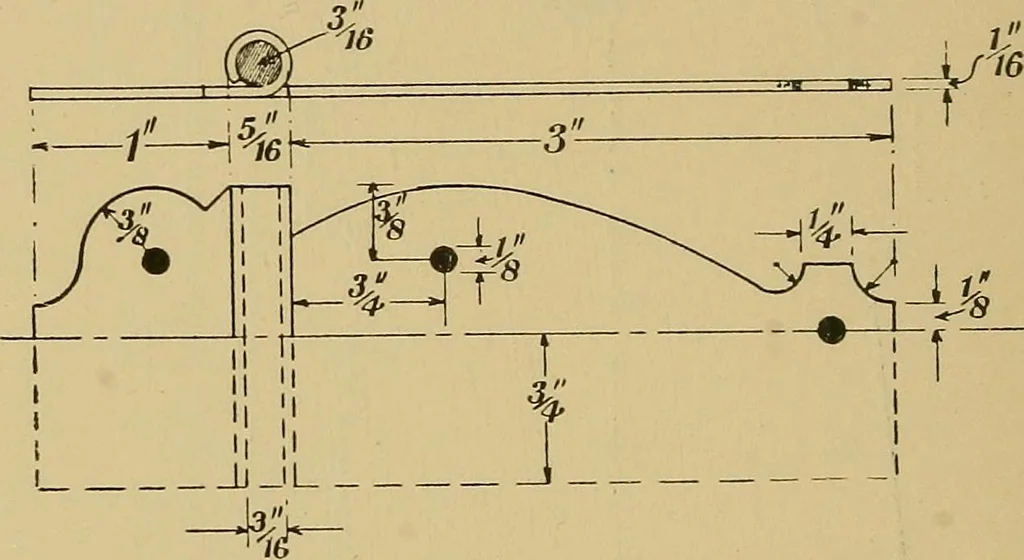

top of the jaw, and lightlyhammering the bend to a right angle. Finally get two snap-headed rivets of requisite length, place the heads in a rivetingblock or snap, and rivet the parts firmly together. Model 5—Hinge : Brass.—Having designed the outline, cutout a strip of brass slightly wider than… … Model 5. starting the bends. Cut the strip into two parts as required,and fit the bends. The waste on the tongue part can be re-moved by sawing, and from the groove by taking two saw-cuts,which can be joined by cuttmg with a small chisel. Havingfitted the parts, secure the hinge by inserting the…
