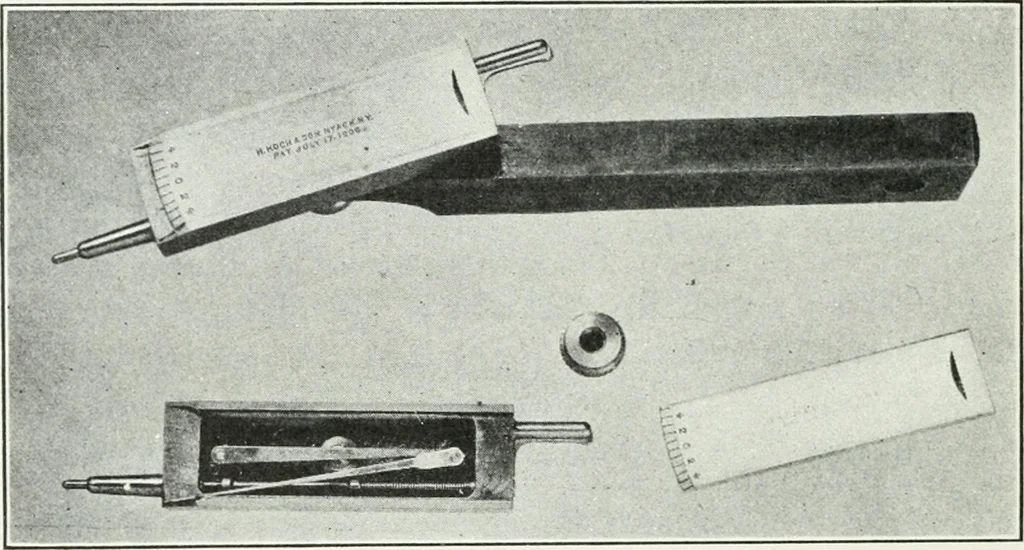

e vibration of thelever as the lathe revolves shows the amount of untruth of thepiece of work. Fig. 74 shows the adjustment of a millingmachine vise at right angles with the cutter arbor to whichlatter the indicator is clamped by a series of collars and a bind-ing nut. By traversing the work table… … FiG. 72.—Tool-makers indicator. face plate is taken in the indicator from the height gage, whenthe indicator is lifted over the jig body into which the measur-ing finger enters. The position of a point within the jig maythen be compared with the reading of the height gage. Fig.76 shows the…
