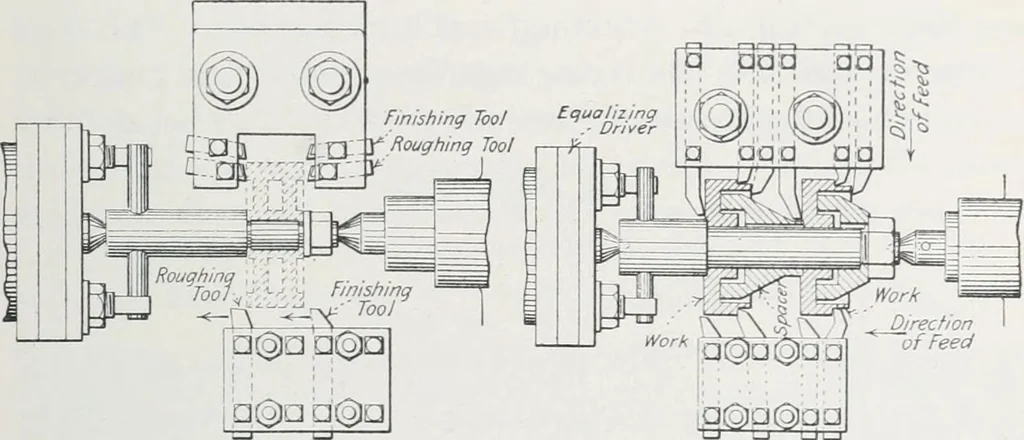

Figs. i6o and i6i.—Fay lathe. TURNING AND BORING 183 length but of comparatively small diameter, the two machinesthus mutually supplementing each other. As in other automatic lathes the operations of the cutting … Fig. 162.—Examples of work for which the Fay lathe is adapted. tools of the Fay lathe are controlled by cams, a cam drum,carrying cams upon both its interior and exterior surfaces,being located at the head-stock end of the machine. The turn-
