Machine drawing; a text and problem book for technical students and draftsmen (1921)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 220

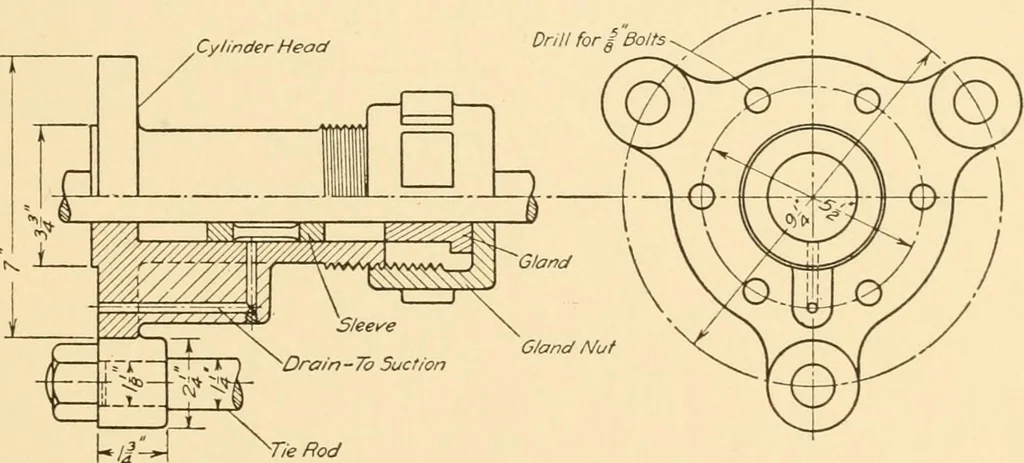

Oufside CylinderHead \ \ 1■l / / ■ Fig. 337. Ammonia Pump Details. PROB. 196, Fig. 337.—Make a working drawing of the FOOT or support. (11 X 14 space.) PROB. 197, Figs. 336, 337, and 338.—Make an assembly drawing of the ammoniapump end. Show two sectional views with all parts in working positions.… … V/e Rod Fig. 338. Inside Cylinder Head. PROB. 198, Figs. 336, 337, and 338.—Make an exterior assembly drawing of theammonia pump end. INDEX Accuracy and neatness, 6 Acme screw thread, 14 Alternate sectioning, 52 Angles, 35 Angles and tapers, to dimension, 66 Arcs, dotted, 4 joining, 4Arcs and…
Machinery
