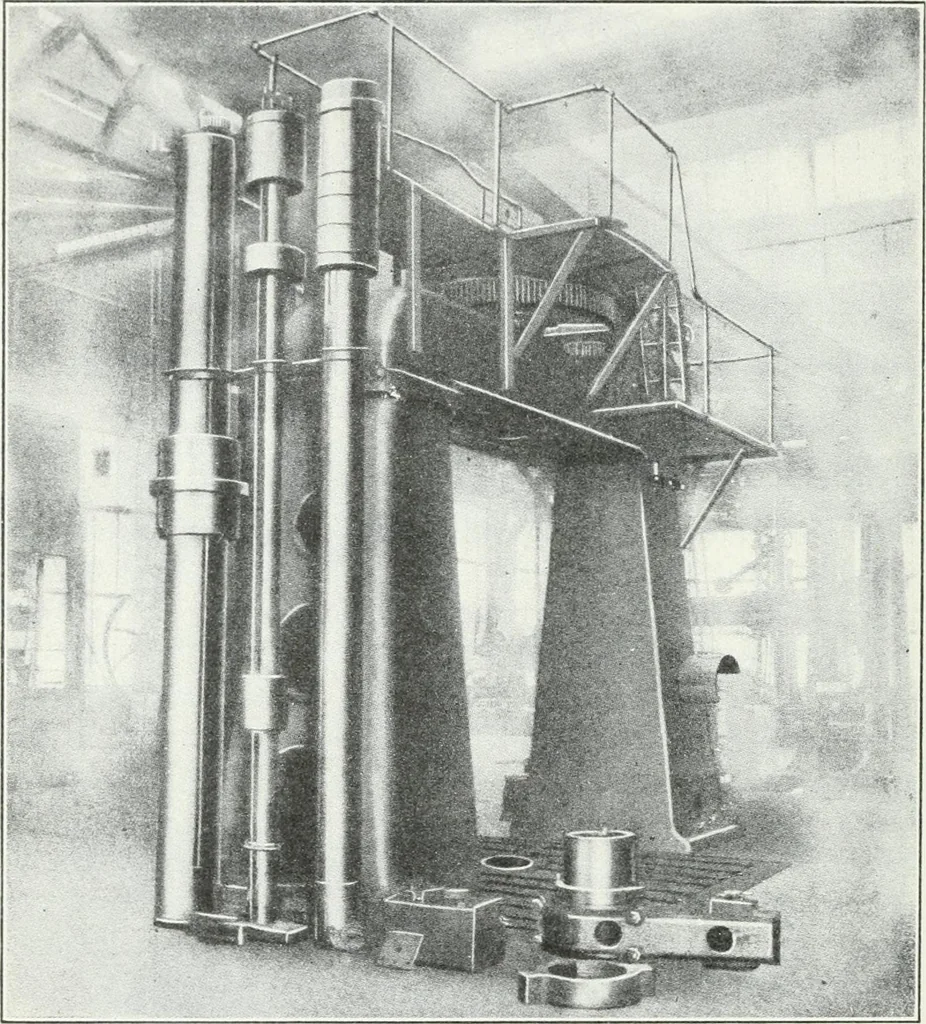

oid the distortion due to their own weightand Fig. 171 shows a machine for boring such cylinders at theBrooklyn Navy Yard. The boring bars, of which three appearat the left of the machine, are of the traveling-head variety and,when at work, are supported above and below by the bearings 190 METHODS… … Fig. 171.—Large vertical cylinder boring machine and boring bars. projects radially and the tool slide with which it is fittedtravels radially and performs the required operation. CHAPTER IX FLOOR-PLATE WORK The floor-plate system of machine tools—Such tools have no definedlimit of capacity—Uses of…
