Methods of machine shop work : for apprentices and students in technical and trade schools (1914)
Halsey, Frederick A. (Frederick Arthur), 1856-1935 · New York : McGraw-Hill · leaf 277

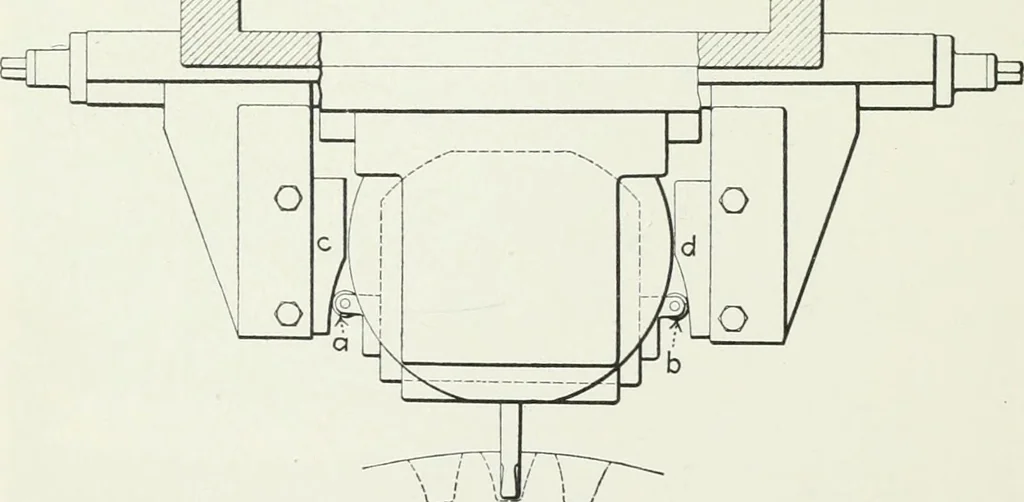

Fig. 270.—Floor plate gear cutting machine, templet system. … Fig. 271.—Principle of the templet system of gear cutting. The application of the templet system to the cutting of bevelgears is shown in Fig. 272 from the Gleason Works. The arm—seen endwise—which carries the planing tool moves about the GEAR CUTTING 267 cone center of the gear to be cut, and in…
Machine-shop practice
