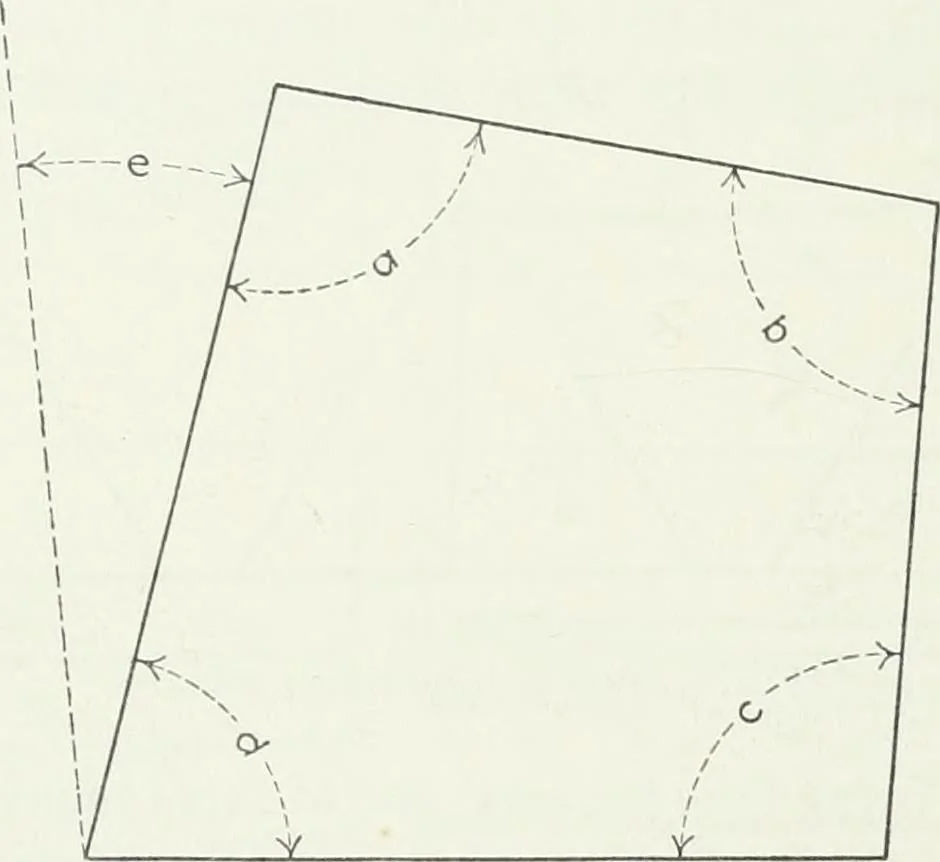

is three squares which, by the nature of theprocess by which they were made, arc known to be correct.Uses of such squares are shown in Figs. 82-85. OTHER METHODS OF ORIGINATING SQUARES Other methods exist for originating squares, one of which isillustrated in Fig. 20. A square—in this case having… … Fig. 20.—Second method of originating squares. This done, the square is applied to the angle at d when the errorwill be shown at e multiplied by four—three times for therectangular plate and once for the square. The direction of theerror being now known, the square is corrected, as nearly as maybe,…
