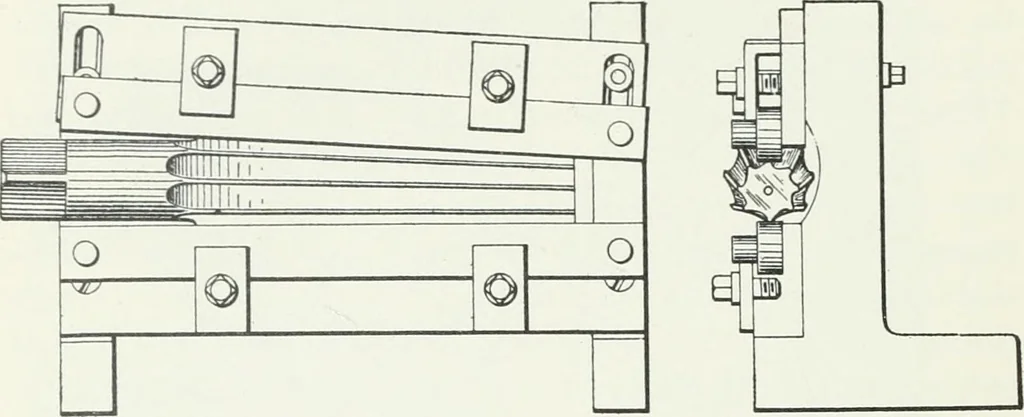

lied—this difference in height beingdetermined by the height gage. The sine bar has many other applications of which two areshown in Figs. :^;^ and 34. In Fig. :^;^ the bar is applied to an * This instrument is described at greater length in the chapter on Measuresof Length.4 50 METHODS OF MACHINE… … Fig. 34.—-Third application of the sine bar method of originating angles. one already shown in Fig. 31—the gage being here shown inthe act of gaging a taper reamer. The sine bar provides, perhaps, the most generally usefulmethod of originating angles. It is extremely simple, quite
