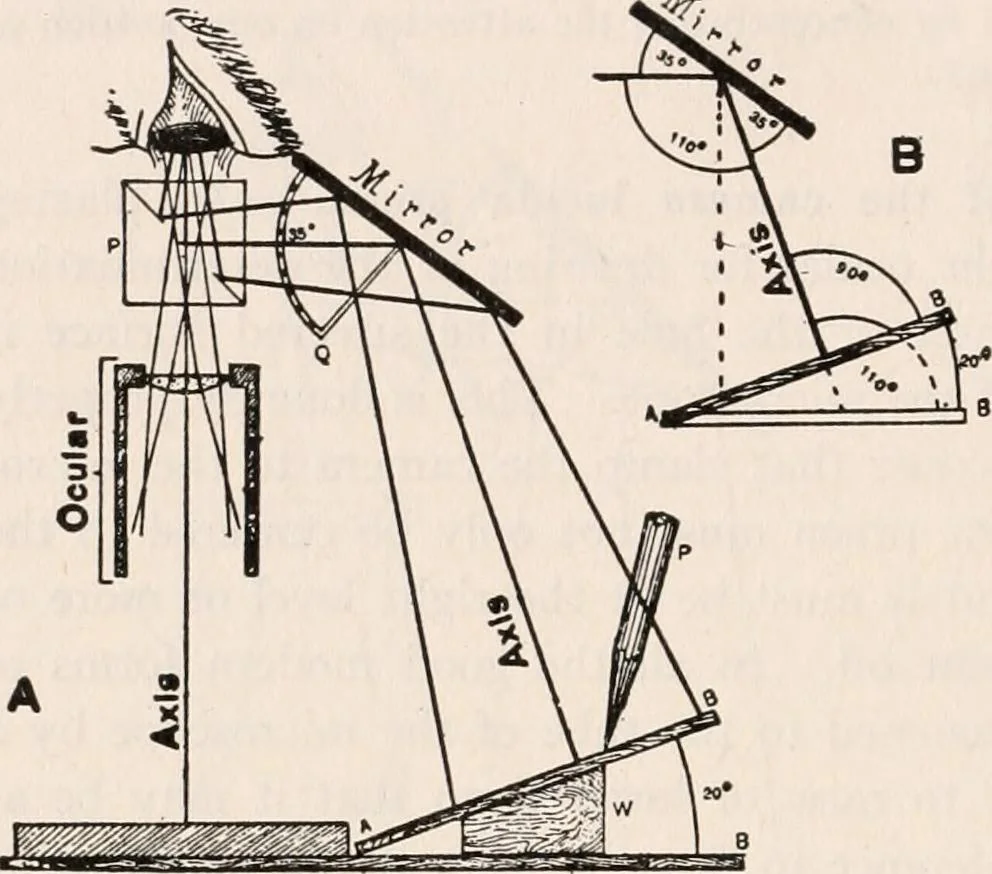

urface (fig. 101 B): Tomake the angle 900again, so that thereshall be no distortion,the drawing boardmust be raised towardthe microscope 200.The general rule is toraise the drawing boardtwice as many degreestoward the microscopeas the mirror is de-pressed below 450.Practically the fieldfor drawing… … Fig. 101. Diagram of the Abbe Camera Lu-cida with the drawing surface elevated toMake the Axis Perpendicular with DepressedMirror. A, Axis, Axis The axial ray from the microscopeand from the drawing surface. Ocular The upper part of the microscopic ocular. Mirror The minor of the camera lucida; it…
