The microscope : its construction and management : including technique, photo-micrography, and the past and future of the microscope (1893)
Heurck, Henri van, 1838-1909 · London : C. Lockwood ; New York : D. Van Nostrand Co. · leaf 167

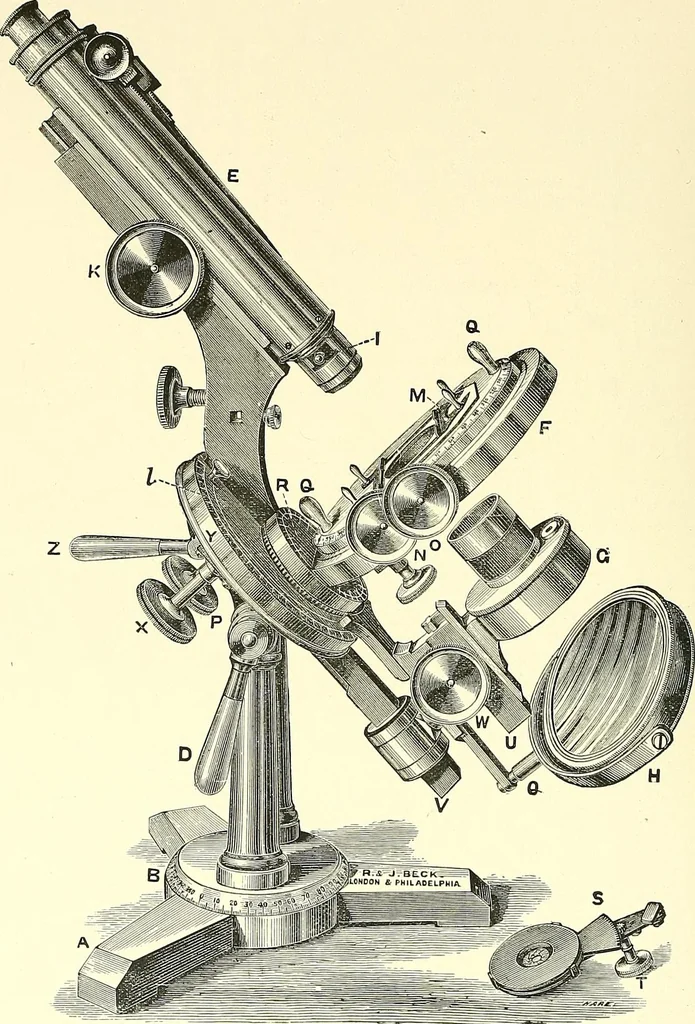

The body of the microscope is supported on two pillars fixed toa horizontal circular graduated plate B, which can be turned on afitting, having three projecting feet in the form of a tripod A, togive stability to the instrument. The stage is of an entirely special construction. Attached to theend… … Fig. 120. R. AND J. BECK. 147 can be examined with any obliquity of light without fear of itsthickness proving a hindrance. The mechanical stage can be givenvertical and horizontal movements by means of the milled heads Nand O; the side of the stage is divided into 360 degrees to serveas a…
Microscopy
