The microscope : its construction and management : including technique, photo-micrography, and the past and future of the microscope (1893)
Heurck, Henri van, 1838-1909 · London : C. Lockwood ; New York : D. Van Nostrand Co. · leaf 275

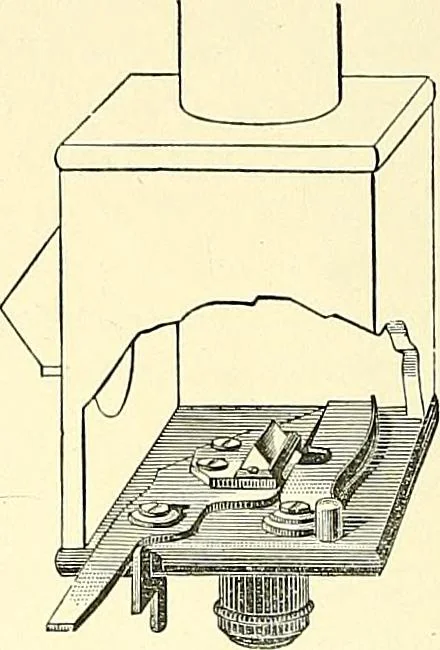

This instrument (fig. 170) isbased on the principle of a micro-scope, with two body tubes-Above the objective (fig. 171) aprism reflects the image into thebody tube at the side containing … Fig. 170. Fig. 171. the ocular. Observation is thuscarried on as with an ordinaryinclined microscope. Thecamera, solidly mounted onpillars, contains the sensitive plate,from which all light is shut off,the reflecting prism itself servingas a shutter to the objective.While the observer is examining…
Microscopy
