The microscopy of vegetable foods, with special reference to the detection of adulteration and the diagnosis of mixtures (1916)
Winton, Andrew Lincoln, 1864-1946, Moeller, Josef, 1848-1924, Winton, Kate Grace Barber, 1882- · New York, John Wiley & sons, inc.; [etc., etc.] · leaf 218

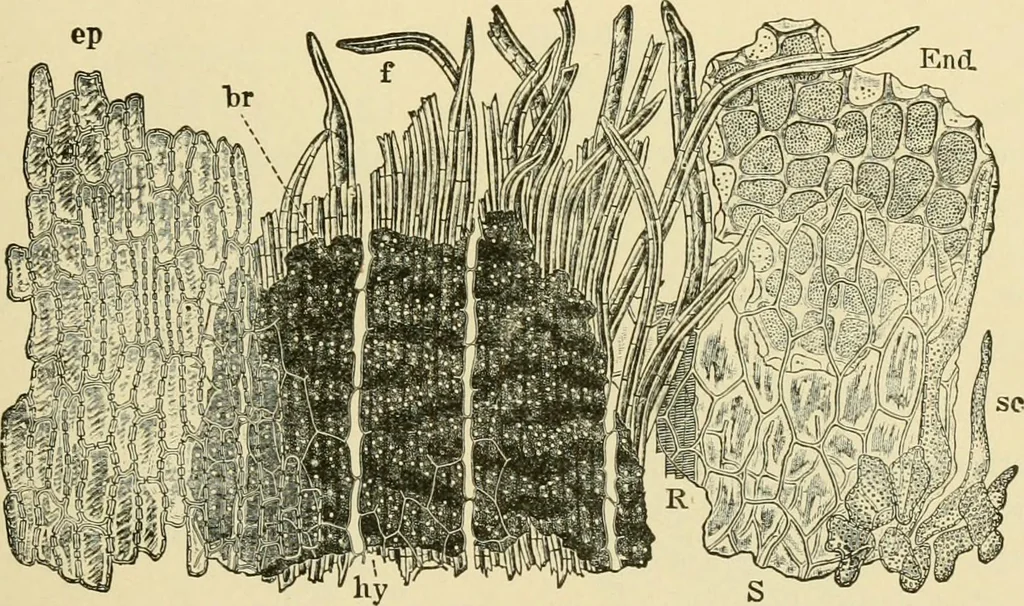

longitudinally elongated cells,forming wedge-shaped partitions {ni). 5. Parenchyma (p). Several rows of partially collapsed parenchymacells form the inner layers of the pericarp. The Spermoderm (Figs. 155 and 156,5) consists of one disunct layerof parenchyma cells without any striking characters,… … Fig. 156. Madia. Elements of fruit in surface view, ep epicarp; liy hypoderm; brpigment plates; / fiber bundle; 5 spermoderm with R raphe bundle; sc pitted cellsat base of spermoderm; £»</endosperm, Xi6o. (Winton.) forms extending in bundles toward the apex. These bundles appearto be distinct…
Plant anatomy · Food adulteration and inspection · Microscopy
