The microscopy of vegetable foods, with special reference to the detection of adulteration and the diagnosis of mixtures (1916)
Winton, Andrew Lincoln, 1864-1946, Moeller, Josef, 1848-1924, Winton, Kate Grace Barber, 1882- · New York, John Wiley & sons, inc.; [etc., etc.] · leaf 586

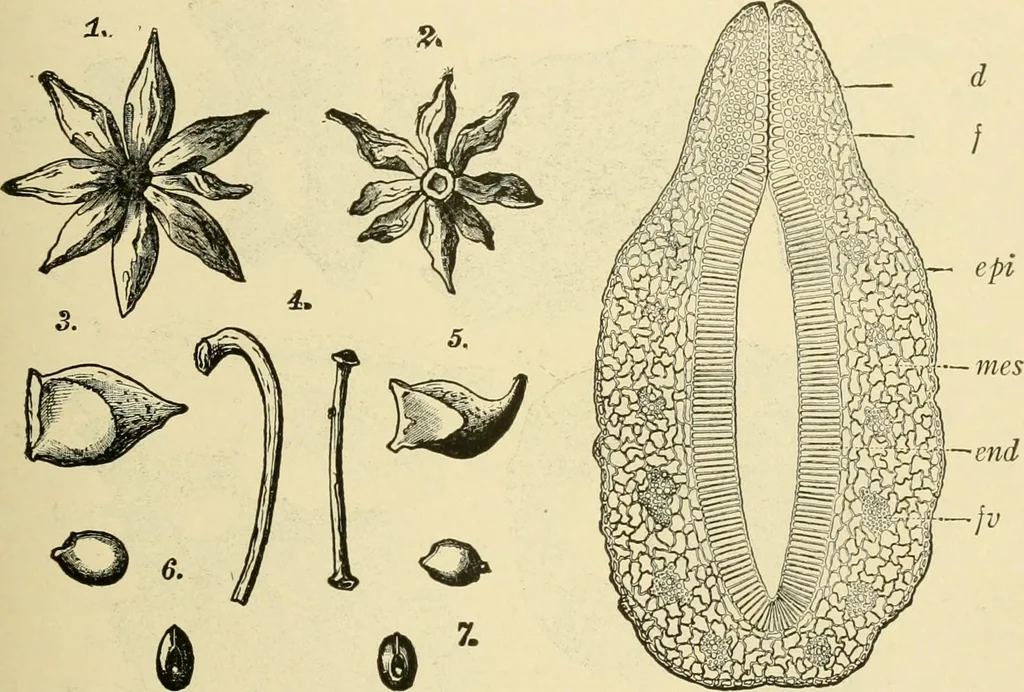

e carpels, 12-20mm. long and 6-10 mm. high, are laterally somewhat flattened, pointedon the free end, and dehiscent on the upper (before expansion, the inner)side, thus making them boat-shaped. The outer surface of the pericarpis dark brown and roughened; the surface of dehiscence and the liningof… … Fig. 486. Si3ir-Kmse{Illiciumverum). i aggre-gate fruit; 3 single fruit; 4 (left) stem; 6 seed.Shikimi {Illicium religiosum). 2 aggregatefruit; 5 single fruit; 4 (right) stem; 7 seed. (VOGL.) Fig. 487. iJcar-Anioe. Cross sectionof fruit, d dehiscence slit; / fibergroup; epi epicarp; mes…
Plant anatomy · Food adulteration and inspection · Microscopy
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
