The microscopy of vegetable foods, with special reference to the detection of adulteration and the diagnosis of mixtures (1916)
Winton, Andrew Lincoln, 1864-1946, Moeller, Josef, 1848-1924, Winton, Kate Grace Barber, 1882- · New York, John Wiley & sons, inc.; [etc., etc.] · leaf 615

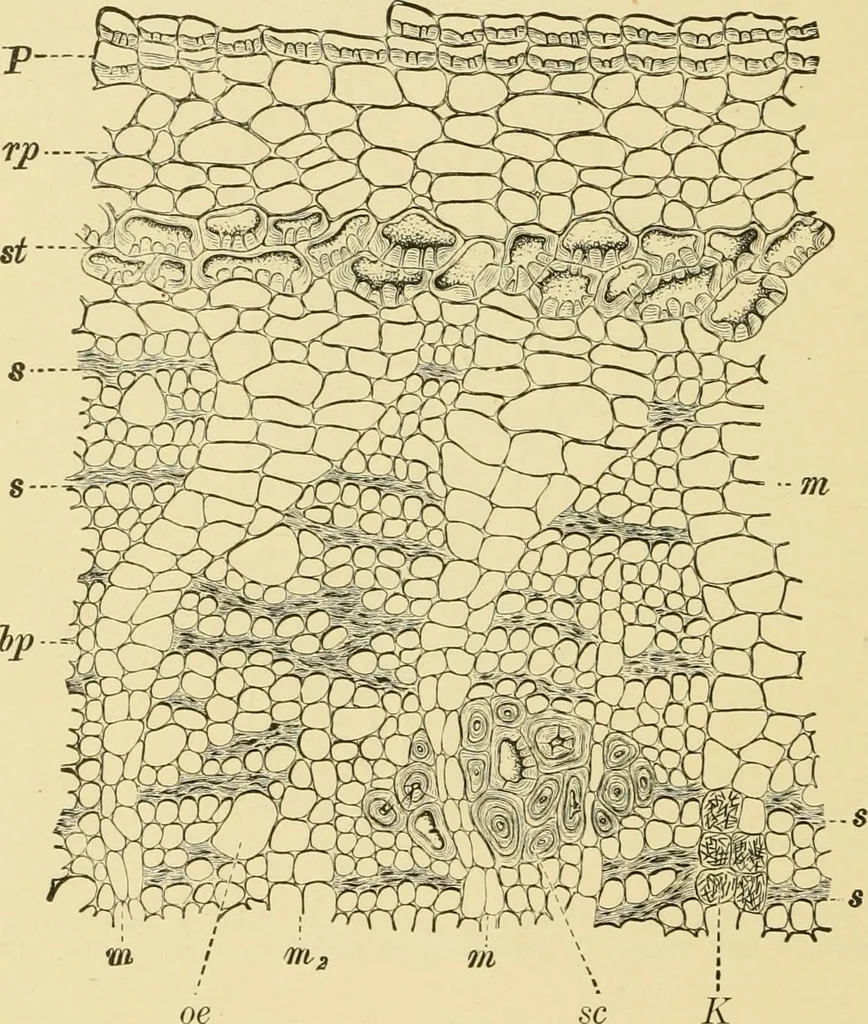

and there by stone-cell groups {sc). Bastfibers are absent. The primary medullary rays broaden greatly at theouter ends, separating the phloem into wedge-shaped groups, whichextend as far as the pericycle. The parenchyma of the bast and the 596 SPICES AND CONDIMENTS. medullary rays contains… … Fig. 509. Clove Bark [Dicypellium caryophyllatum). P sclerenchymatized cork; rpcortex; st stone-cell ring (pericycle); bast consists of 5 sieve tubes, bp parenchyma,sc stone cells, oe oil cells, K raphides cells, m primary and m^ secondary medullary rays. X 160. (MOELLER.) on one side, also the oil…
Plant anatomy · Food adulteration and inspection · Microscopy
