The microscopy of vegetable foods, with special reference to the detection of adulteration and the diagnosis of mixtures (1916)
Winton, Andrew Lincoln, 1864-1946, Moeller, Josef, 1848-1924, Winton, Kate Grace Barber, 1882- · New York, John Wiley & sons, inc.; [etc., etc.] · leaf 657

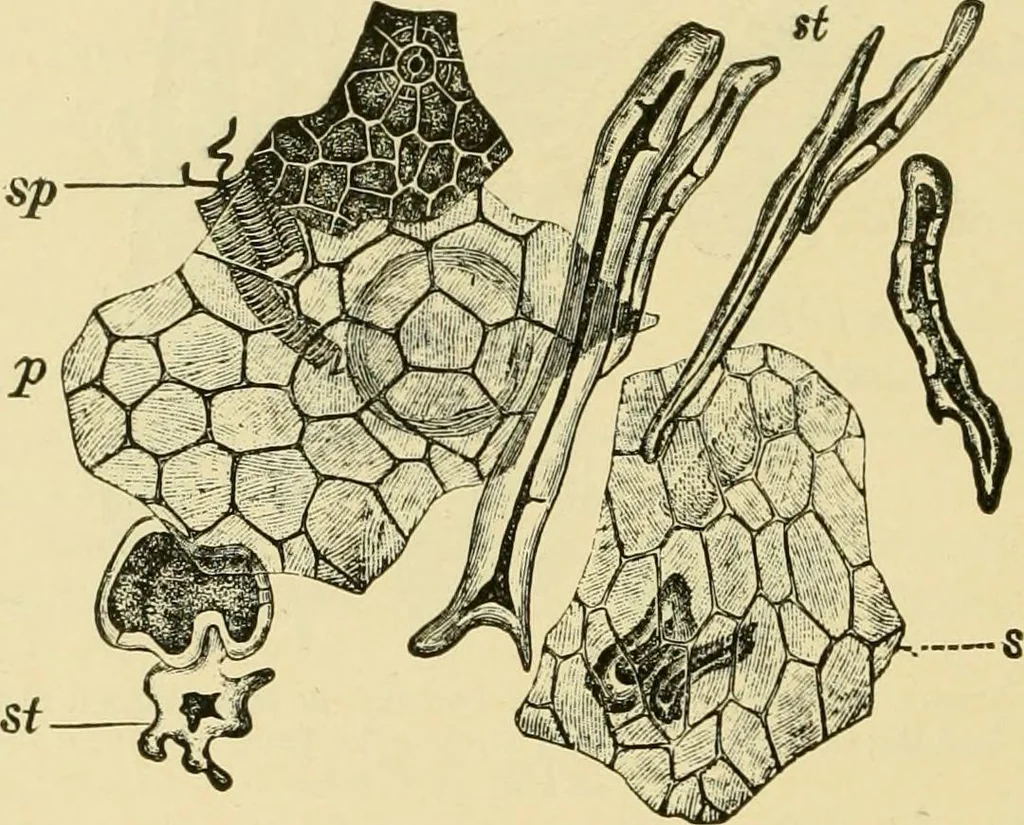

CONDIMENTS. and numerous ovules, only one cell and one seed are found in the ripefruit (Fig. 559, C). The latter is but a swollen and ripened clove, 25 mm.long, 8 mm. thick, crowned with the incurved calyx teeth and the remainsof the style, but lacking the corolla and stamens. The seed fills the… … I Fig. 566. Clove Fruit. Tissues of pericarp in surface view, sp spiral vessels and epicarp;p brown parenchyma with underlying oil cavity; st stone cells and fibers; 5 endocarp. X 160. (MOELLER.) the bundles. These vary from bast fibers 800 n long to isodiametricstone cells, and display a great…
Plant anatomy · Food adulteration and inspection · Microscopy
