Military sketching and map reading for non-commissioned officers (1915)
Grieves, Loren C. (Loren Chester), b. 1878 · Washington : United States infantry association · leaf 24

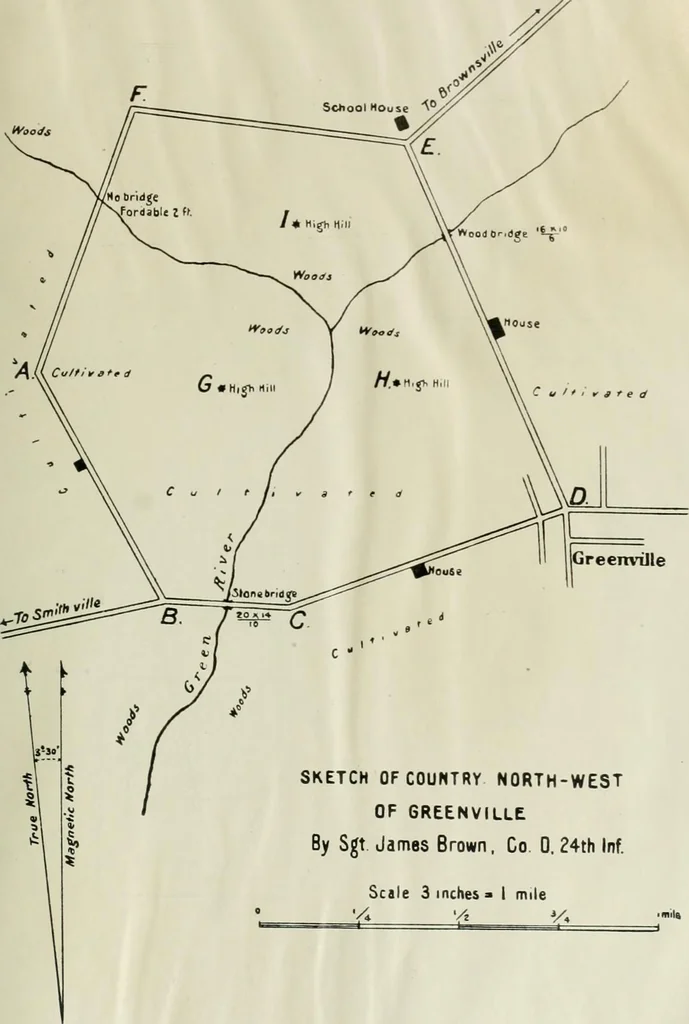

ld be indicated at some con-venient place on the sketch: (See Fig. 8.) 1. Location of sketch. 2. Name and organization of sketcher. 3. Date of sketch. 4. Scale of map. 5. The magnetic north, and, if the declination of the needle is known, the true northshould be indicated also. 6. Reading scale. 7.… … SKETCH OF COUNTRY NORTH-WESTOF GREENVILLEBy Sgt James Brown, Co 0. 24th Inf. Scale 3 inches » I mile Fig, 8 22 MILITARY SKETCHING AND MAP READING
Maps, Military · Military topography
Internet Archive · UBC Library · Public Domain Mark 1.0. Free to use for anything.
