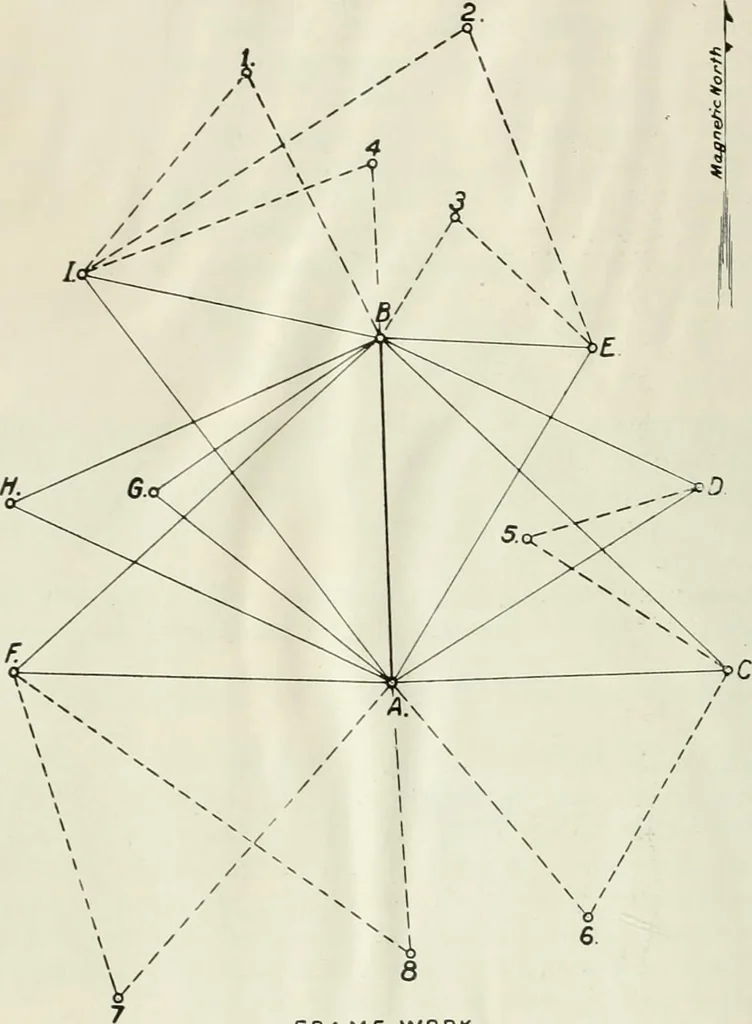

INES,INTERSECTION AND RESECTION, he will take the class to some large roomin barracks, and locate all of the main features of the room by establishing a baseline on a conveniently large scale, say 1-40, and locating points by intersection andresection. He should assure himself that each member of… … FRAME WORK POSITION SK.E.TCM. Jc a le 6 xlmi/e A. B is the Base LineC. D. £.. F. G. H. I. Points located by intersection1.2.3.4.5.6.7.6 Points located by resectionintersection lines are plain*Resection lines are broken Fig. 21 For Non-Commissioned Officers 59 POSITION SKETCH Jones Cr. and Black…
