Rankine, William John Macquorn, 1820-1872, Millar, William J, Tait, Peter Guthrie, 1831-1901 · London, C. Griffin and company · leaf 583

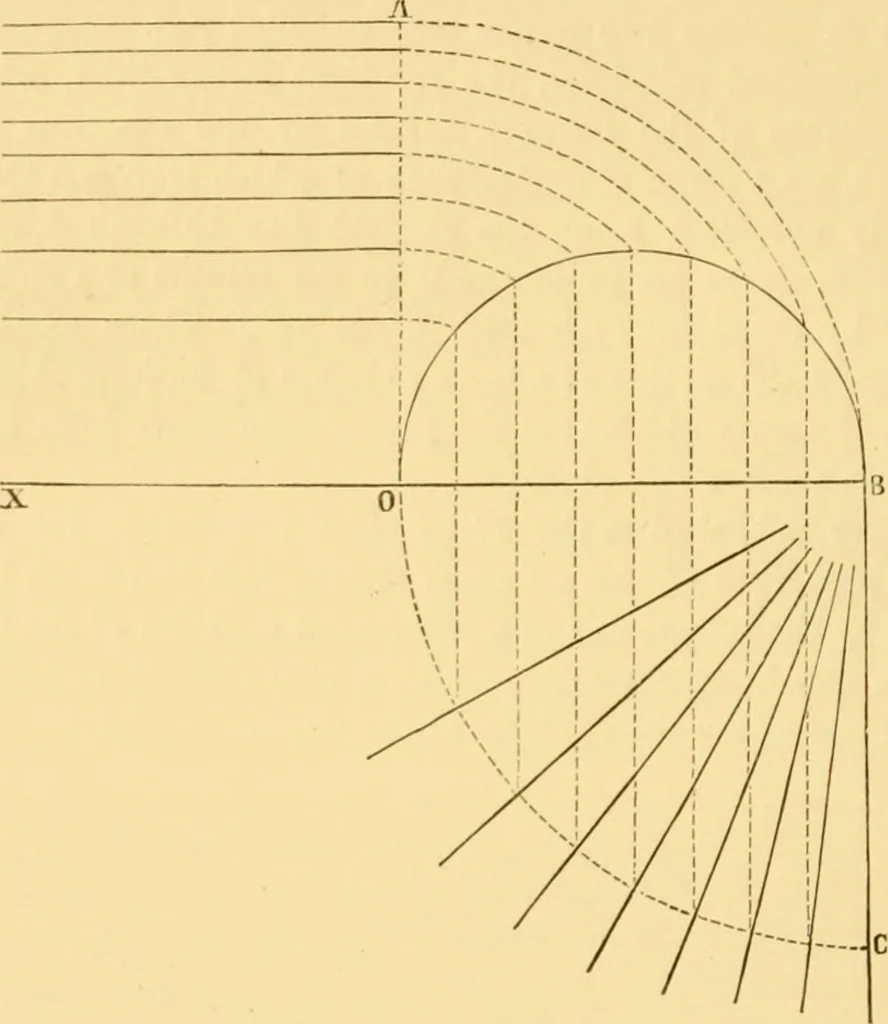

dyreferred to as having been published in the Philosophical Transactions for1863, from which Fig. 3 is copied; and it is unnecessary to enter into 528 PRINCIPLES RELATING TO STREAM-LINES. details respecting them here. The figure shows only one quadrant of thecomplete set of stream-lines, the other… … Fis. 4. 13. Parallel Straight Stream-Lines in a Wedge-shaped Layer.—When acurrent flows past a solid of revolution, the figure and arrangement of thestream-lines are to be determined by considering the motion in a wedge-shaped layer of indefinite length and breadth, having its edge at the axisof…
