Model engine construction, with practical instructions to artificers and amateurs (1894)
Alexander, John Henry. [from old catalog] · London, New York, Whittaker · leaf 104

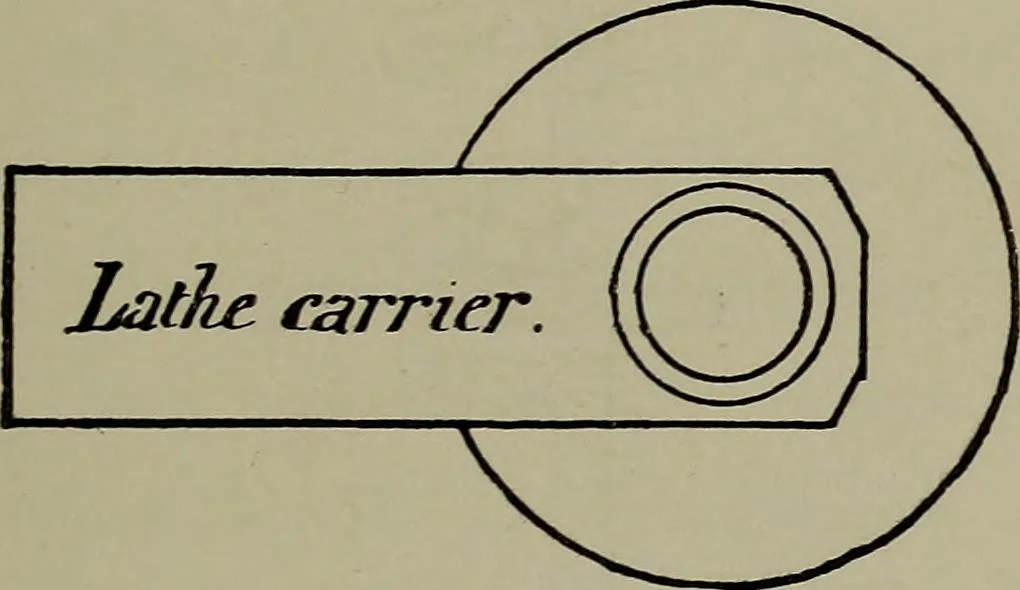

p truly. Some covershave a projecting part which enters the cylinderbore when in position, but this is not required.Now remove the cover, undo the solder, and reverse THE STEAM-ENGINE. 85 the cover in the lathe. Having soldered the stripof brass to the previously-turned face, turn thisside as… … Fig. 27. same way. Drill a hole right through it, so asto be an easy fit on the piston-rod; widen thishole for about half its depth, beginning at the out-side or stuffing-box end. With a plug-tap makea screw in it. If the hole for the piston-rod is TVdiameter, that for the stuffing-box should be…
Steam-engines · Machinery
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
