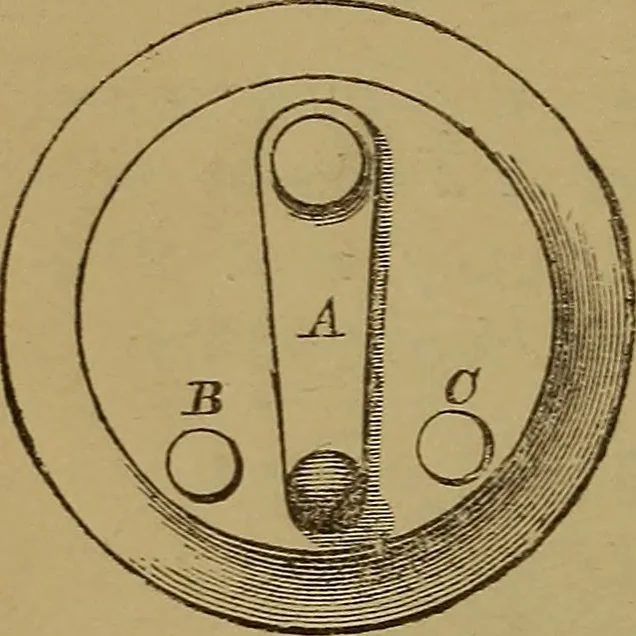

Box Sounder, or Relay.9. Describe the pocket relay. In the pocket relay the lever is brought down so as to packIt is a main-line sounder and is used by line m a caserepairers. Fig. 36. rocket Relay,10. What is the switch: The switch, or commutator is a contrivance for quicklychanging the current… … Ground Switch.and C. The ground switch has a lever A at-tached to a wire leading to the earth.Two studs B and C connect with theline wire on either side of the instru-ments. By means of an ebonite buttonthe lever A may be used to connecteithei line with (he ground. 12. The button switch? In the…
