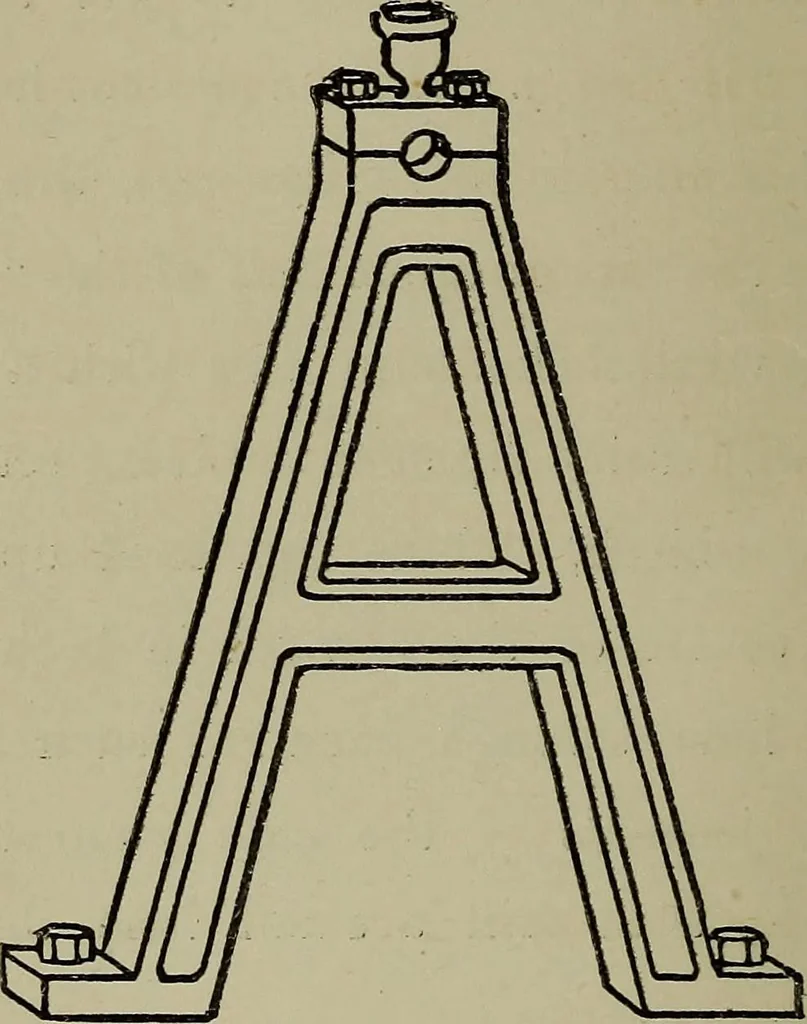

the crank-shaft is at right angles to thepiston-rod, and exactly in line with it, when thecylinder is bolted down in position. Standards for vertical engines are fitted up inthe same way, and must be so bolted to the bed- 102 MODEL ENGINE CONSTRUCTION. plate, that the central axis of the… … Fig. 32. the cap is also a casting. Between the block andthe cap is fitted the brass bush to take the axle.This bush is in two halves, which are called thebrasses or steps; these are cast with flangeson both sides to keep them in position, and to THE STEAM-ENGINE. 103 prevent them turning along…
