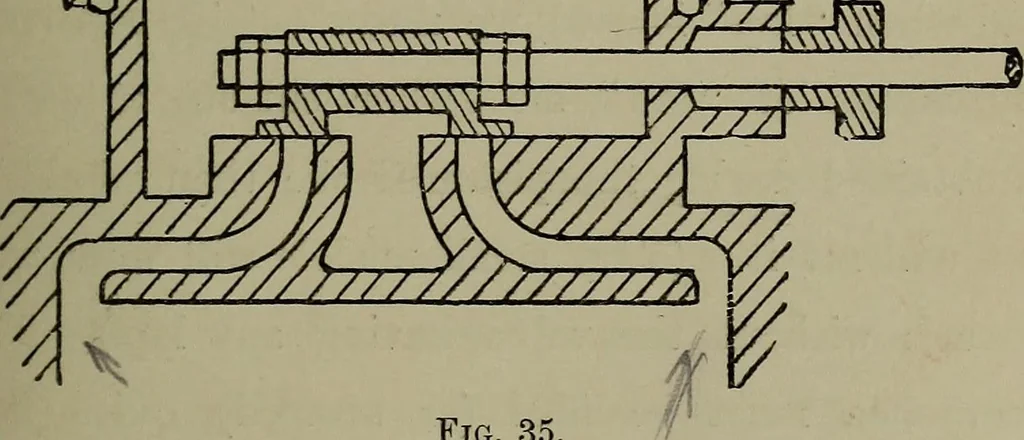

haped key is driven into the space between thewheel and the shaft, and the wheel will now revolvequite true with the axle. THE STEAM-ENGINE. 107 The pulley-wheel is a brass or iron casting, fittedup in exactly the same way as the fly-wheel. It isplaced upon the opposite end of the axle to the… … Fig. 35. while the valve is gripped in the vice—cut or hollowout the interior, until it becomes box-shaped, andhaving edges all round. The length on the face,from the inside of one flange to the inside of theother, should be just a shade less than the distancebetween the inner edges of the…
