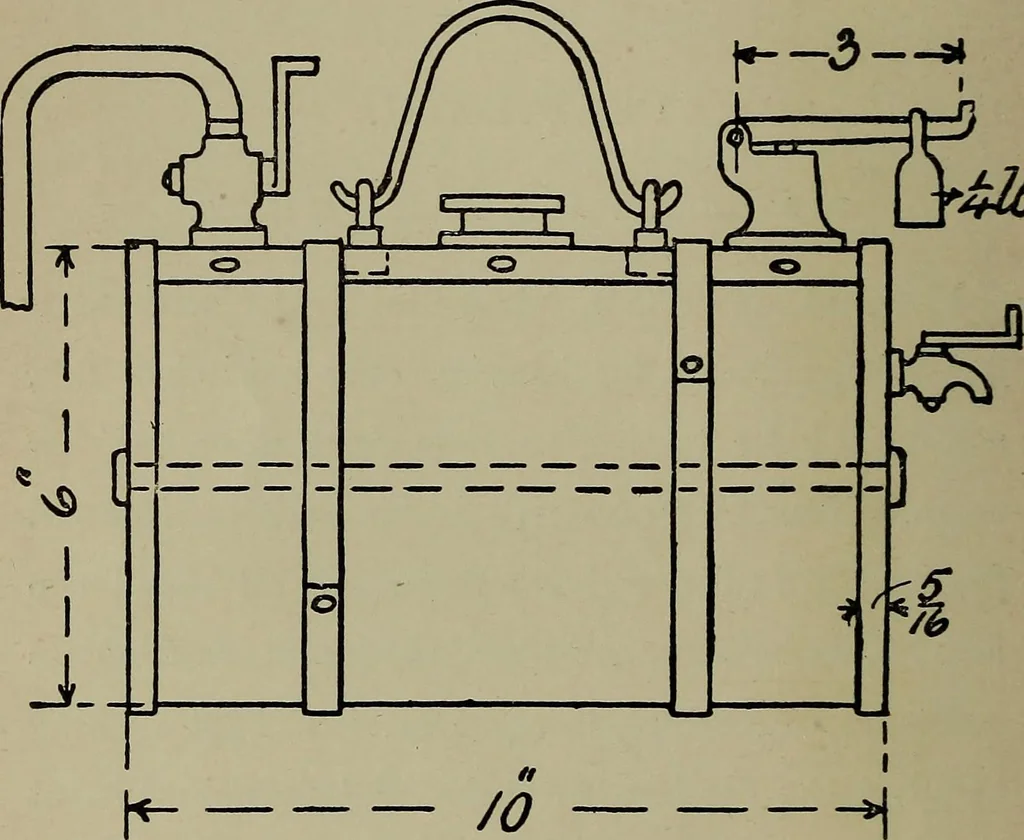

astly, a vertical boiler, constructed in asimilar way to the locomotive boiler. The horizontal boiler (see Fig. 11a) is madeentirely of No. 20 sheet brass, riveted and solderedtogether, and when complete is 10 long and 6 indiameter. Cut a sheet 19xl0, and bend it into 32 MODEL ENGINE CONSTRUCTION.… … h /o Fig. 11a.—Boiler for Kitchen Fire (| full size). of zinc is applied. Fasten these ends together alongthe longitudinal seam here and there with solder,then drill three holes for rivets which pass throughthe over-lap, one near each end, and one near the THE BOILERS AND THEIR FITTINGS. 33 centre;…
