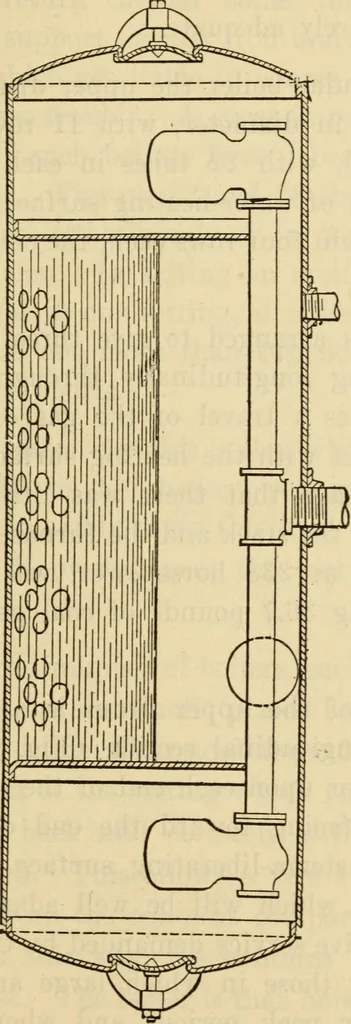

Fig. 25side elevation erie city water tube boiler any other. The entire boiler is suspended, as the engrav-ings show, from the upper drum, giving perfect flexibility Erie City Water Tube Boiler 59 and freedom to adjust itself to varying conditions of tem-perature and stress. The sufficiency of the… … Fig. 26 ENLARGED VIEW SHOWING SEPARATOR IN DRUM OF ERIE CITY BOILER joints in the upper drum to sustain the weight thus broughtupon them has not only been tested out thoroughly in 60 Steam Engineering former boilers of this construction, but has been tried inthe boiler illustrated by means of…
