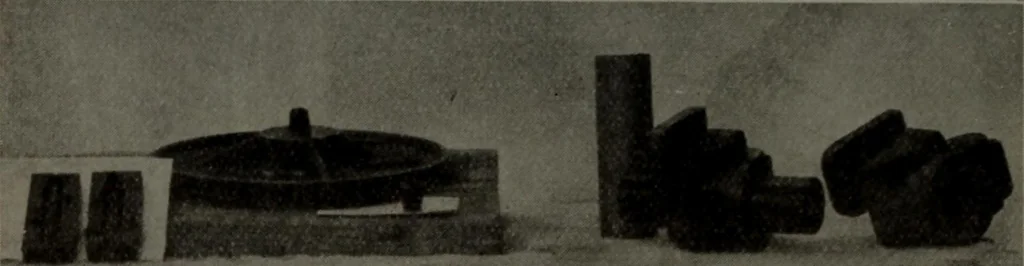

is assured of good results. Our face plate pattern will first be placed upon themoulding board, flat side down, as in Fig. 62A, thenthe drag, shown, on end, behind the moulding board, isplaced over it as in Fig. 63A, and filled with mouldingsand which is *rammed do\\Ti and smoothed off evenA\ith… … Fig. 66B Fig. 66A—Pattern in place on board Fig. 66B—Typical parted pattern with horizontal core print is placed upon the top of the drag for the moment, andthe whole is turned over, the removal of the mouldingboard exposing to view the side- of the pattern whiclirested upon it, as sho^Ti in Fig.…
