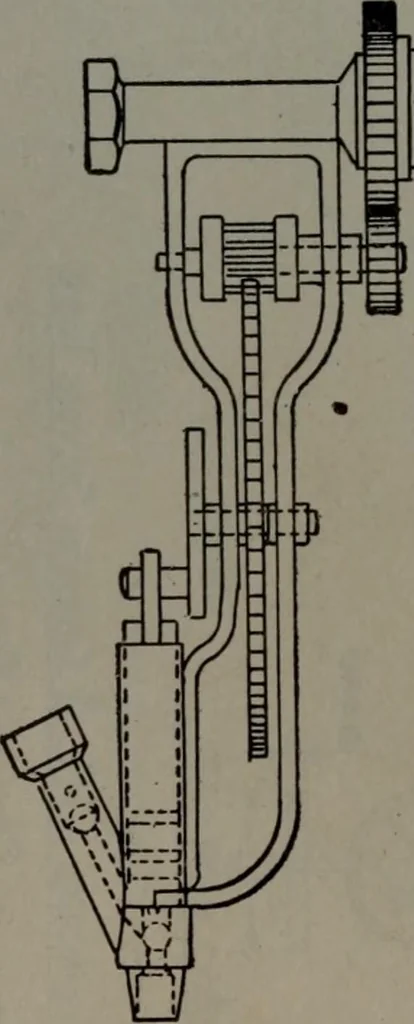

^ «ii Vj Ci rv 2 z VJ J c vi) 0 d J NO I IL id s to bo P4 192 Model Engineering screwed connection for the purpose of connecting it tothe hollow crankshaft of the engine. Water is supplied to the boiler at the big end of thecoils from a force feed pump, which is driven by theengine through a train… … Fig. 128—How the pump is geared to the engine frame was constructed of umbrella ribbing for the pumpsupport and its gearing. The pump piston and cylinderare made of brass, the former being about l^ inch indiameter and is fitted with two packing rings. Bronzeballs are used in the check valves to…
