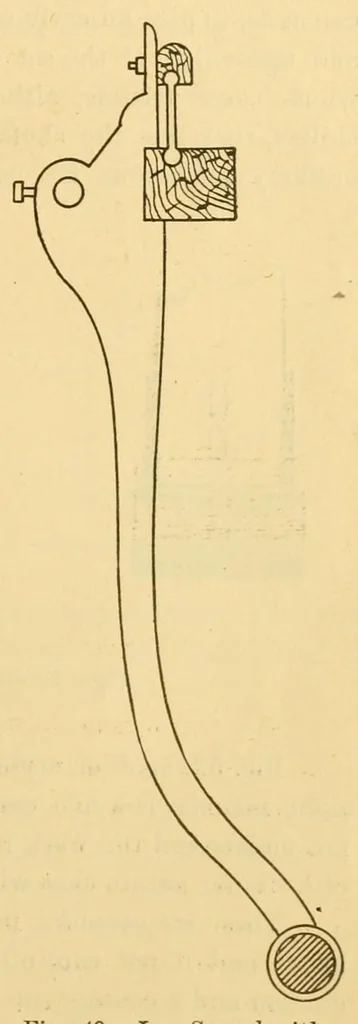

WEAVING. 83 ings in its makeup ; therefore, when a small portion wears out a large portion has to be replaced, necessitating repairs costing two or three times more than those of a properly constructed loom. It does not necessarily mean weakness when several parts are bolted together instead of… … Fig. 49. Lay Sword with and 51). If the lower portion of the lay Rocker Shaft Connections. sword is bolted to a bracket, which is set- screwed to the rocker shaft, it is a com- paratively easy matter to loosen the bracket from the lay sword and to then loosen the boxes of the shaft and draw it out.…
