Model making; including workshop practice, design and construction of models, a practical treatise for the amateur and professional mechanic .. (1919)
Yates, Raymond F. (Raymond Francis), 1895- ed · New York, The Norman W. Henley Pub. Co. · leaf 202

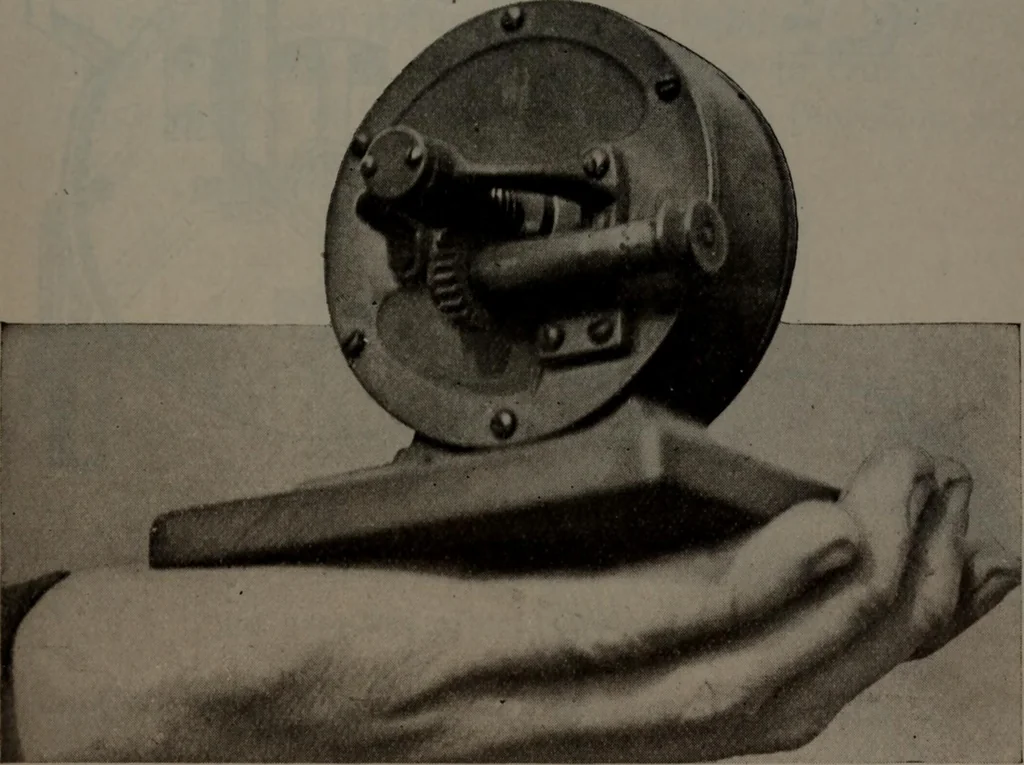

hole would need to be drilleddiagonally through the casing. The exhaust steam passesout at the bottom of the casing, which facilitates the keep-ing of the interior free from water. The reduction of 198 A Model Steam Turbine 199 speed is accomplished by a worm wheel mounted on theturbine shaft and… … Fig. 133—The complete steam turbine, showing its comparative size jet of steam on the turbine wheel is offset by the thrustof the worm wheel on the gear of the driving shaft. The shaft of the turbine wheel is made as long aspossible, and the outer end supported in an outboardbearing. Each bearing…
