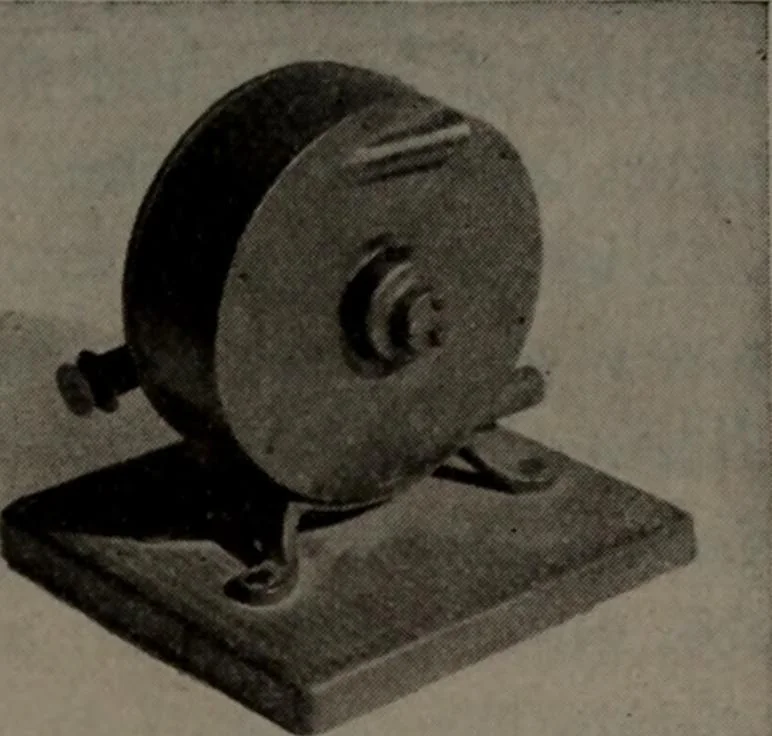

red number have beeen formed up, one A Model Steam Turbine 203 of them should be very carefully laid out and cut to thesize and shape shown in Fig. 140, and this can be usedas a gauge with which to mark out the others. The crosssection of the turbine wheel shows the rim turned out toform the same… … Fig. 136—The turbine, showing the steam inlet the easier construction and keeps the buckets in positionequally well. After the wheel is turned to the required shape, theslots for the buckets must be made in the rim. If one hasa milling machine or a lathe arranged for plain milling,the work is very…
