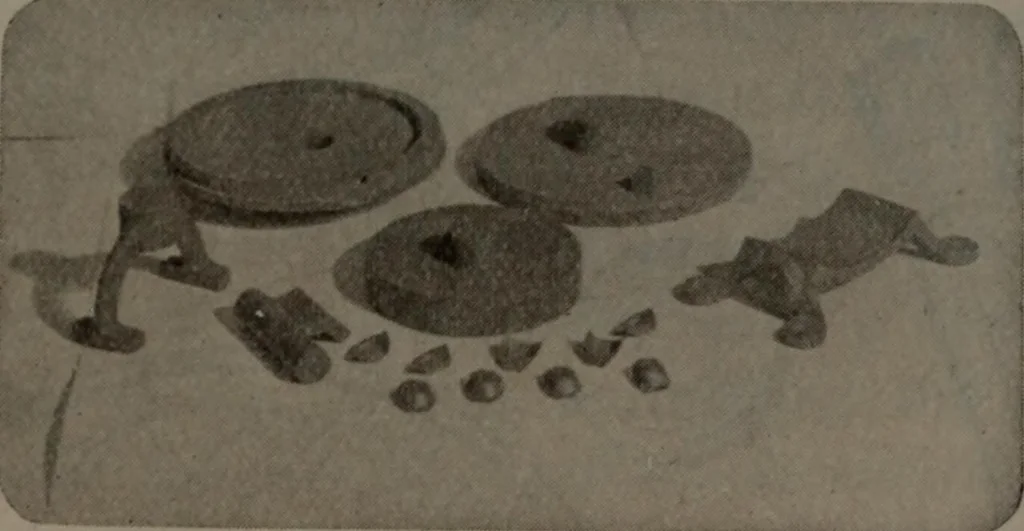

the head. When the outboard A Model Steani Turbine 209 bearing has been fitted, the hole in the stuffing box shouldbe enlarged a little so that the shaft will not touch it. The packing gland is shown at Q and will not requirean extended explanation. It should be a sliding fit inthe stuffing box and… … Fig. 138—The castings for the model steam turbine. The pressed buckets are also shown in the head. No finishing is required on the inside ofthis head. The two heads can now be marked off and drilled forthe screws which are to hold the casing together. Layoff six points around the edge of the flange…
