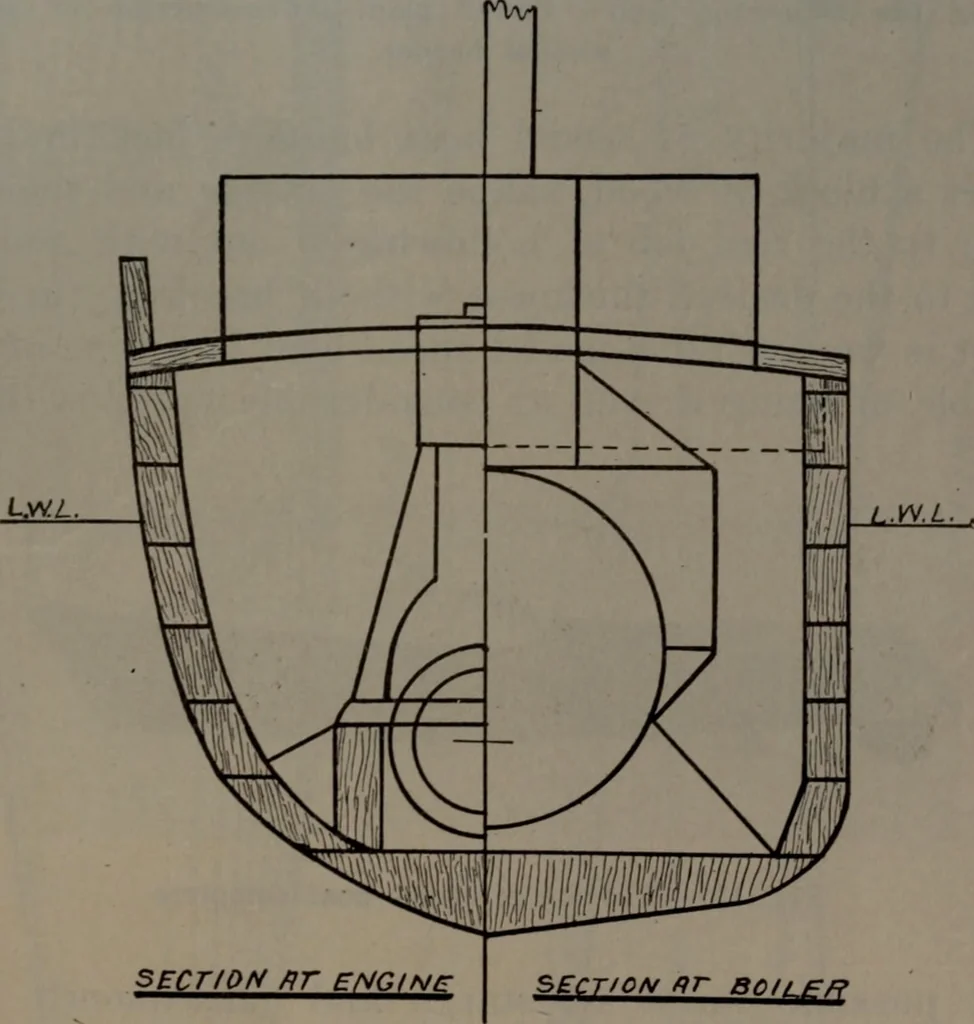

inches above the engine casing. Theexhaust steam from the engine is carried up the wastepipe aft of the funnel. The deck fittings forward con-sist of a steering boom, two bullards, two fairheads and A Model Lake Freighter 265 four life buoys for the bridge. On the main deck are sixbullards and two… … SBCriON nr ENGlNir section ftr Bo/f fff rig. 176—Sections of the boat at the boiler and the engine the boat is made of sheet brass and is fitted with aquadrant. The hull of the model is painted black above thewater line and red below the water line. The deck andhatches are painted deep maroon and…
