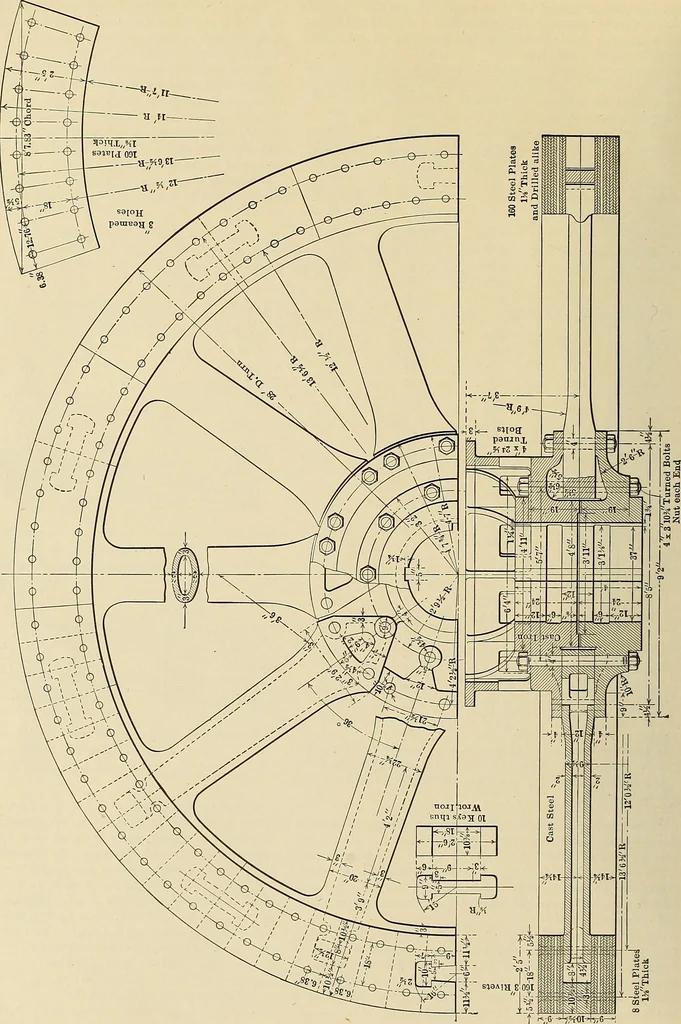

eriphery, having taper sides of 27 deg. The laminated slieets C, which occupy a width of i ft. 95 ins., aremade from .0281 in. bessemer (not annealed) sheet steel, 12 being usedfor a circumference. Each sheet is made with two dovetails fittinginto the notches machined in the spider rim. 72 HANDBOOK… … I 3O o jau 0) o 6 >^HOX-4v5-^ FLY-WHEELS 73 On each outer side of the laminated sheets is an end plate made ofcast steel. Each end plate is accurately drilled, reamed and fittedwith ten ij cold-rolled steel bolts D, the ends of which are fitted withhexagon nuts which set into counterbores in the…
