Model making; including workshop practice, design and construction of models, a practical treatise for the amateur and professional mechanic .. (1919)
Yates, Raymond F. (Raymond Francis), 1895- ed · New York, The Norman W. Henley Pub. Co. · leaf 289

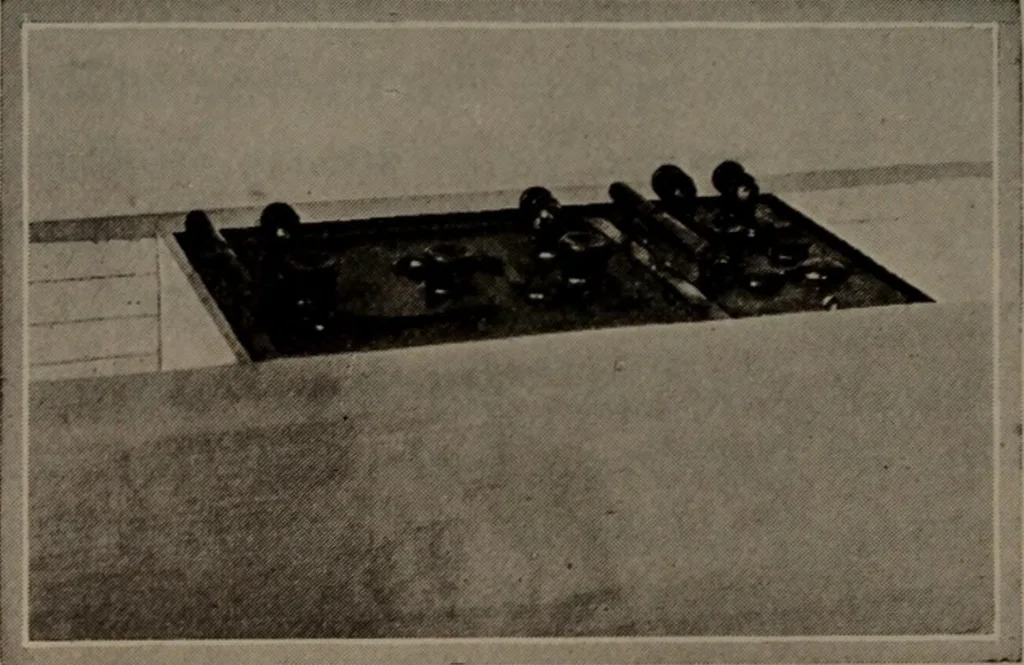

Fig. 198—The storage batteries used on the submarine the thickness of the mixture. After making sure of theregister, nail bow and stern with a single brad to holdin place. Then start at one end and nail with lV2-inclibrads for this, the starting plank. Place brads not more … Fig. 199—The storage batteries in their compartments throughout the entire length of than 2 inches apartthe hull. When the second plank is secured to the first, wipethe cement from the seam where it has been squeezed outand paint the surface of No. 2 and of No. 3 ready for A Model Submarine With…
Machinery
