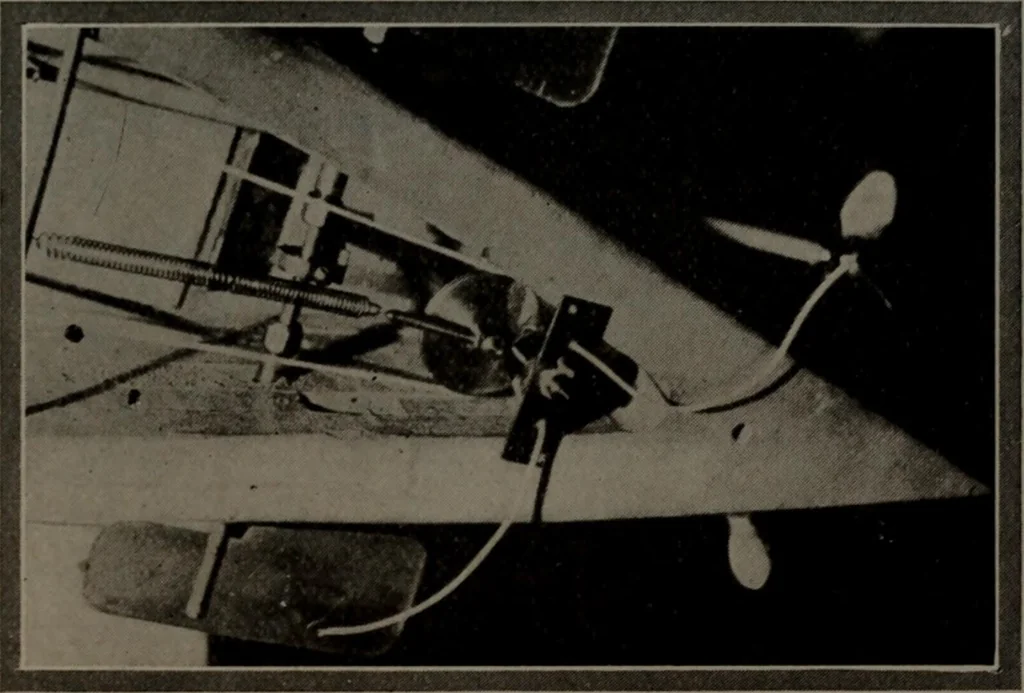

the constructural data, the reader is referred toFigs. 210, 211, and 213, which are working drawings ofthe several parts of the control. The remaining illustra-tions. Figs. 212 and 214, show the complete mechanisminstalled within the hull. For an explanation of the working principle let us A Model… … Fig. 208—The rudder control mechanism The latter passes through a brass pipe sleeve or housingfitted with packing glands at either end. To the top of the rudder post is fitted a brass dischaving a shallow groove turned in its periphery to carry-
