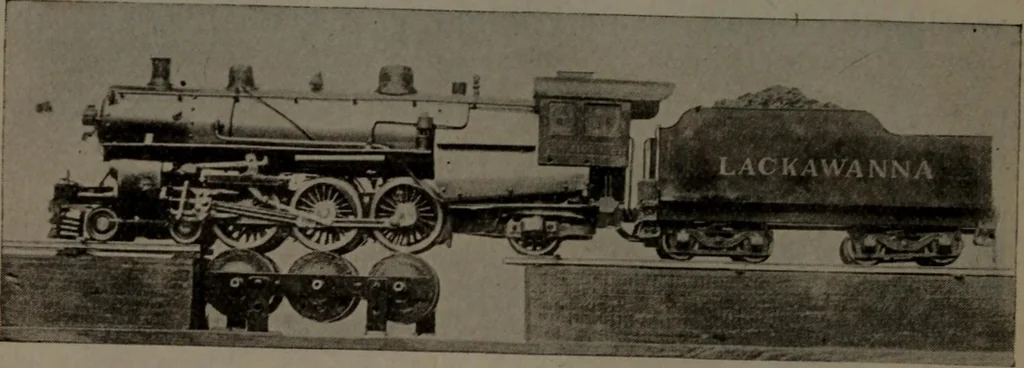

is only % inch in thickness, the rearend bemg tied by a brass casting and the forward endby the cylinder castings which embrace the frame asshown in front view of engine. The next step to be taken is the axle boxes; these areof brass and have ample bearing surfaces, being no lessthan %6 inch wide.… … Fig. 283—The locomotive mounted upon its testing stand cast axle boxes at each side and pivoted just in back ofrear driver. The weight is carried and sprung on a sorto± U-shaped hmge. The spring is held at the rear endby a bracket bolted to the main frame and the forwardend by a hanger connected to…
